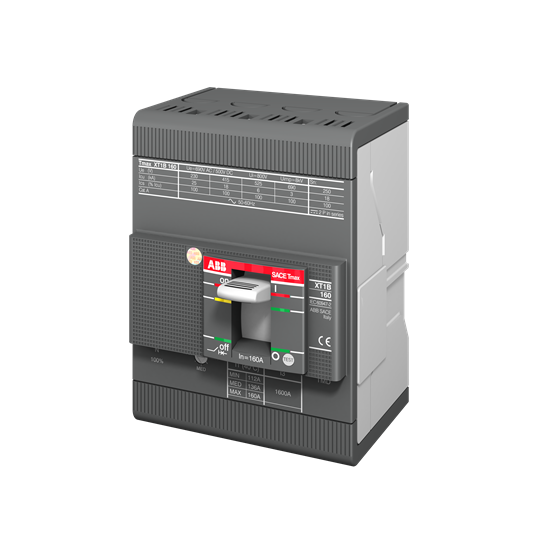

ABB 1SDA067443R1 Moulded Case Circuit Breaker 690/500VAC/VDC 125A 4-P 50kA TMD 1250A Front For: XT1S

Product Code: 1SDA067443R1

  • MCCB with 4 poles and front connection
  • Rated current of 125 A, breaking capacity 50 kA
  • IP20 protection with bolt terminal type
  • Rated voltage up to 690/500 VAC/VDC
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
10.7W
Long Time Overload Protection Adjustment Range
87.5 to 125 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800V
Type of Protection Trip Unit
TM
Rated Current (In)
125A
Rated Frequency
50/60Hz
Trip Curve
TMD
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.4kg
Width
101.6mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
5kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
8kA

Documents

IPD Product Catalogue V17
