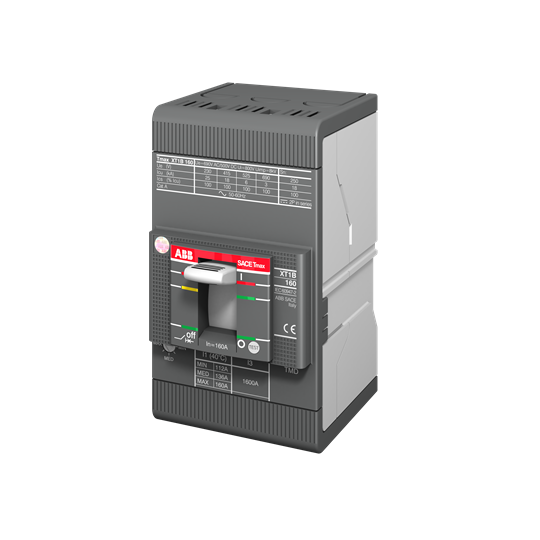

ABB 1SDA067433R1 Moulded Case Circuit Breaker 690/500VAC 80A 3-P 50kA TMD 800A Front For: XT1S

Product Code: 1SDA067433R1

  • MCCB with 80 A rated current
  • 50 kA breaking capacity for reliability
  • Front connection with bolt terminals
  • IP20 protection and IEC60947-2 compliant
  • Compact width of 76.2 mm, weight 1.1 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
4.8W
Long Time Overload Protection Adjustment Range
56 to 80 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800V
Type of Protection Trip Unit
TM
Rated Current (In)
80A
Rated Frequency
50/60Hz
Trip Curve
TMD
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.1kg
Width
76.2mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
5kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
8kA
