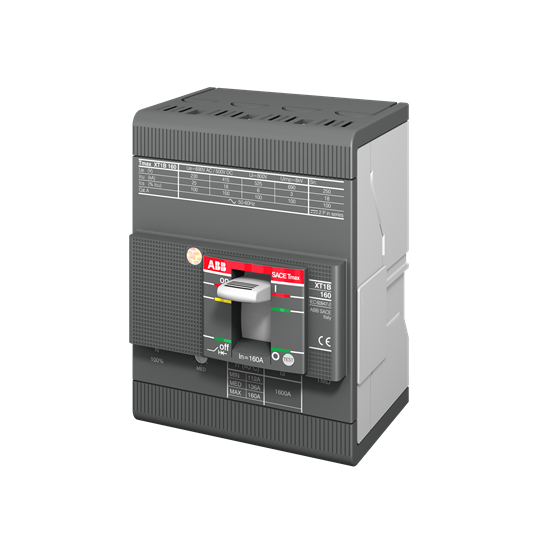

ABB 1SDA067406R1 Moulded Case Circuit Breaker 690/500VAC/VDC 100A 4-P 25kA TMD 1000A Front For: XT1C

Product Code: 1SDA067406R1

  • MCCB with 100 A rated current
  • 25 kA breaking capacity
  • Front connection, bolt terminals
  • IP20 protection, IEC60947-2 compliant
  • Suitable for XT1C use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
7W
Long Time Overload Protection Adjustment Range
70 to 100 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800V
Type of Protection Trip Unit
TM
Rated Current (In)
100A
Rated Frequency
50/60Hz
Trip Curve
TMD
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.4kg
Width
101.6mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
25kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
4kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
4kA

Documents

IPD Product Catalogue V17
