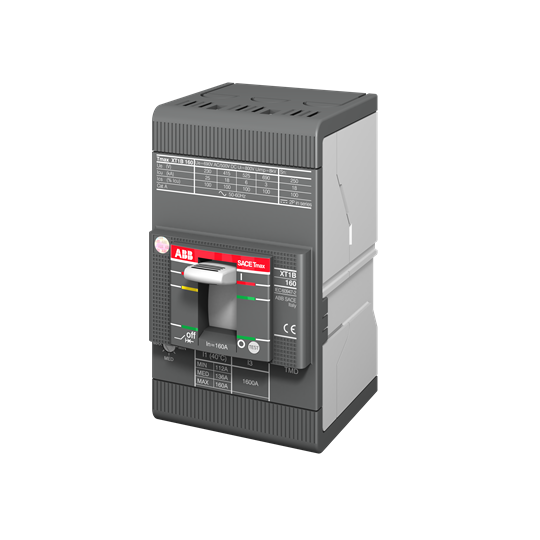

ABB 1SDA067397R1 Moulded Case Circuit Breaker 690/500VAC/VDC 100A 3-P 25kA TMD 1000A Front For: XT1C

Product Code: 1SDA067397R1

  • MCCB with 100 A rated current
  • 3-pole design, IP20 protection
  • Rated voltage up to 690 VAC
  • Breaking capacity of 25 kA
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT1C
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Long Time Overload Protection Adjustment Range
0.7...1xIn
Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
TMD
Frame Size Rating
XT1 (160 frme)
Rated Current (In)
100A
Rated Frequency
50Hz to 60Hz
Trip Curve
Adj: Thermal, Fixed: Magnetic
Electrical Life
8000
No. of Poles
3P

Mechanical

Frame Size
XT1 (160 frme)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.1kg
Width
76.2mm
Pole Width
25.4

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
100% of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
25kA

Documents

IPD Product Catalogue V17
