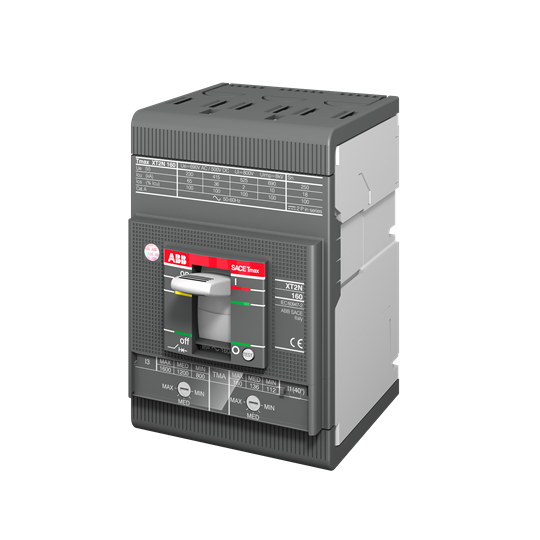

ABB 1SDA067048R1 Moulded Case Circuit Breaker 690/500VAC/VDC 12.5A 3-P 36kA 175A Front For: XT2N

Product Code: 1SDA067048R1

  • Rated current of 12.5 A for reliable performance
  • High breaking capacity of 36 kA
  • Front connection with bolt terminals for easy setup
  • Compact width of 90 mm fits tight spaces
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Motor Protection

Electrical

AC Power Loss Per Pole at In
1.05W
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
M
Rated Current (In)
12.5A
Rated Frequency
50/60Hz
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
130mm
Weight
1.1kg
Width
90mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE, GL, LR

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10kA
