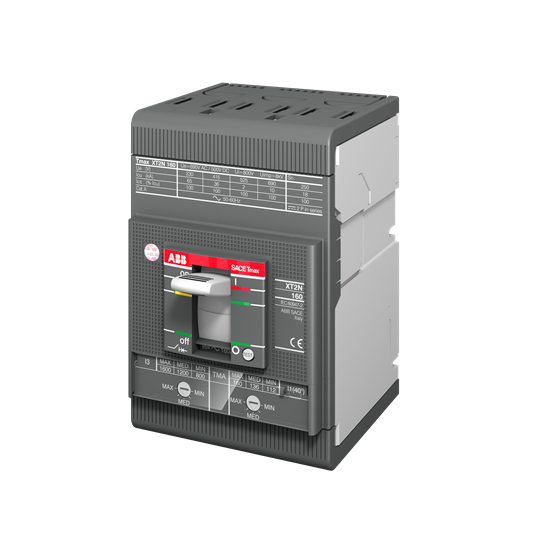

ABB 1SDA067044R1 Moulded Case Circuit Breaker 690/500VAC/VDC 1A 3-P 36kA 14A Front For: XT2N

Product Code: 1SDA067044R1

  • MCCB with 1A rated current and IP20 protection
  • Handles up to 690V AC/500V DC, 3 poles
  • Strong breaking capacity of 36 kA
  • Front connection with bolt terminals
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Motor Protection

Electrical

AC Power Loss Per Pole at In
2 W
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
M
Rated Current (In)
1:00 AM
Rated Frequency
50/60 Hz
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3

Dimensions & Physical Data

Depth
82.5 mm
Height
130 mm
Weight
1100 g
Width
90 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE, GL, LR

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10 kA

Documents

IPD Product Catalogue V17
