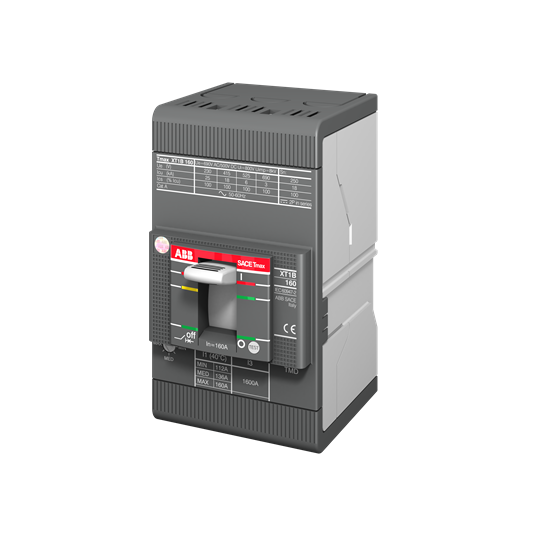

ABB 1SDA066800R1 Moulded Case Circuit Breaker 690/500VAC/VDC 20A 3-P 18kA TMD 450A Front For: XT1B

Product Code: 1SDA066800R1

  • MCCB with 20 A rated current
  • High breaking capacity of 18 kA
  • Front connection, bolt terminal type
  • IP20 protection rating for safety
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
1.8W
Long Time Overload Protection Adjustment Range
14 to 20 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800V
Type of Protection Trip Unit
TM
Rated Current (In)
20A
Rated Frequency
50/60Hz
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.1kg
Width
76.2mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE, GL, LR

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
18kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
3kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
3kA
