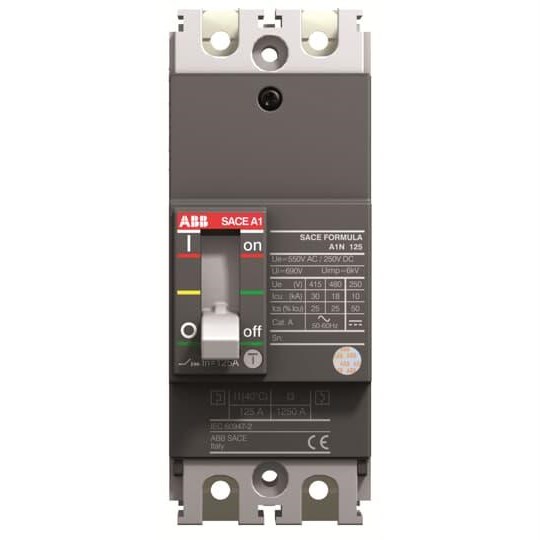

ABB 1SDA066500R1 Moulded Case Circuit Breaker 250VAC/VDC 550VAC/VDC 40A 2-P 2.5kA Front

Product Code: 1SDA066500R1

  • MCCB with 40 A rated current
  • Handles up to 550 VAC/VDC
  • Compact width of 50.8 mm
  • Front connection for easy access
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE FORMULA

Electrical

AC Power Loss Per Pole at In
4.5W
Max. Rated Operation AC Voltage (Ue)
550V AC
Rated Insulation Voltage (Ui)
690V
Type of Protection Trip Unit
TM
Rated Current (In)
40A
Terminal Type
Front
Electrical Life
1500 cycles
Mechanical Life
8500 cycles
No. of Poles
2P

Dimensions & Physical Data

Depth
60mm
Height
130mm
Weight
0.542kg
Width
50.8mm

Safety, Standards & Compliance

Standards and Approvals
IEC, CE

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA

Documents

IPD Product Catalogue V17
