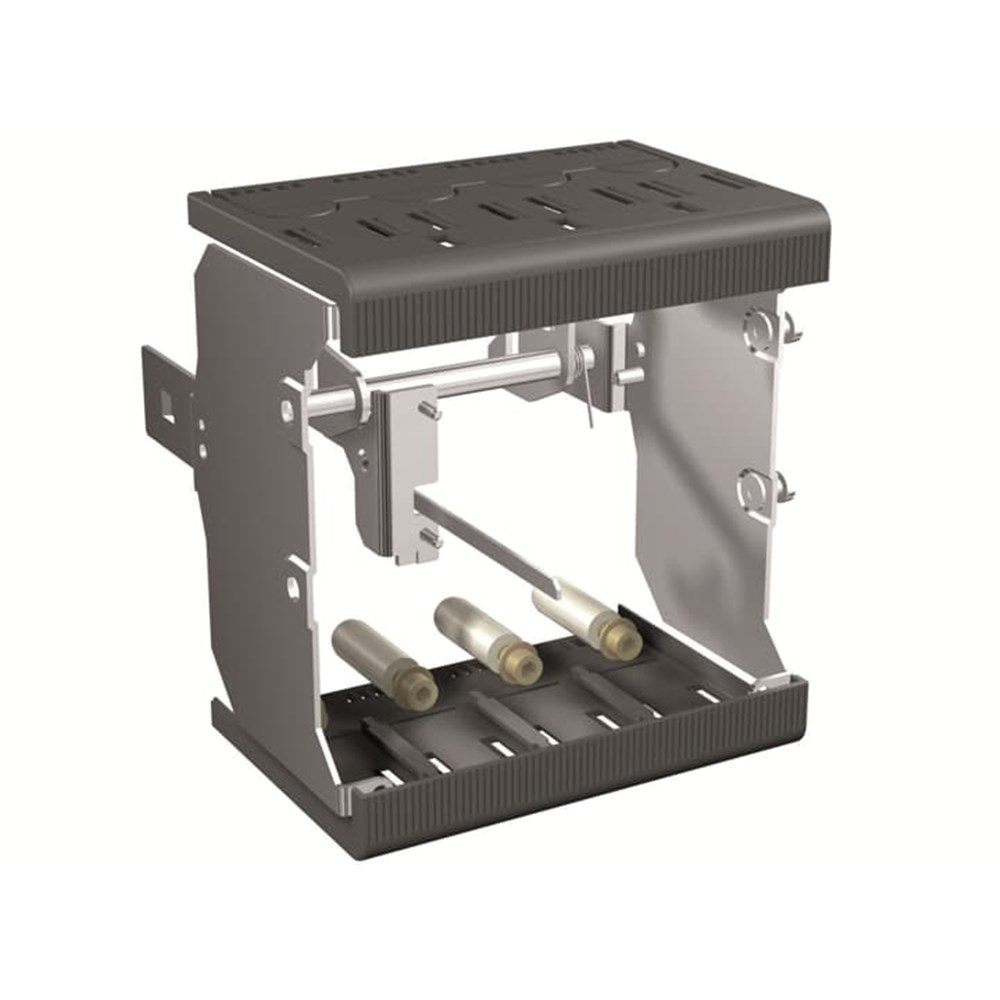

ABB 1SDA066285R1 Conversion Kit 4-P 300mm For: XT2 (SACE Tmax XT)

Product Code: 1SDA066285R1

  • 4-pole configuration for versatile use
  • Compact size: 300x250x30 mm
  • Complies with IEC60947-2, UL 489 standards
  • Environmentally friendly: REACH, RoHS compliant
  • Compatible with XT2 (SACE Tmax XT)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Conversion Kit
Brand
ABB
Series
XT2
Application
Industrial power distribution, Switchgear retrofits, Motor control centers, Manufacturing plants

Electrical

Long Time Overload Protection Adjustment Range
XT2
Rated Current (In)
160A
No. of Poles
4P

Dimensions & Physical Data

Depth
300mm
Height
30mm
Weight
0.678kg
Width
250mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2; UL 489; ETIM: EC002049; UNSPSC: 39122221
