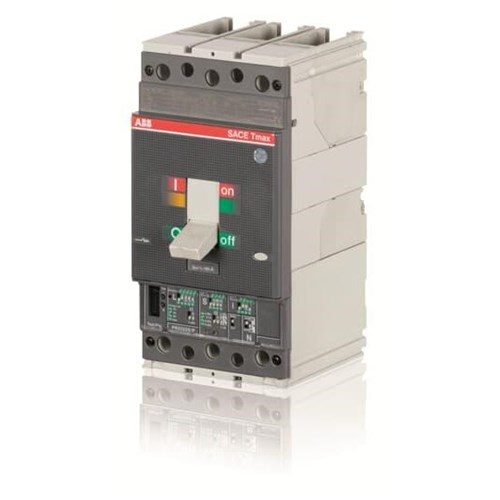

ABB 1SDA063434R1 Moulded Case Circuit Breaker 1000VAC 250A 3-P 250A Ekip Dip LSI Front For: T4

Product Code: 1SDA063434R1

  • Rated current of 250 A for robust performance
  • Handles up to 1000 V insulation and voltage
  • Ekip Dip LSI trip unit for precise control
  • Compact 105 mm width, front connection design
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB - 1000V
Brand
ABB
Series
T4 L
Application
Industrial power distribution, mines, road and railway tunnels, electrical transport

Electrical

Instantaneous Protection Adjustment Range
1...13xIn
Long Time Overload Protection Adjustment Range
0.4...1xIn
Max. Rated Operation AC Voltage (Ue)
1000V
Rated Impulse Withstand Voltage (Uimp)
8kV
Reverse Connection of Supply Possible
No
Type of Protection Trip Unit
Electronic
Frame Size Rating
T4 (250 Frame)
Rated Current (In)
250A
Rated Frequency
50Hz to 60Hz
Trip Curve
Ekip M-LRIU
Electrical Life
8000
No. of Poles
3P
Max. Operational Vibration Frequency
2-13.2Hz (IEC 60068-2-6 Test Fc)

Mechanical

Frame Size
T4 (250 Frame)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
2.35kg
Width
105mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20
Max. Altitude Before Derating
2000 m

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 1000 V AC
12kA
Rated Service Short Circuit Breaking Capacity (Ics) at 1000V AC
12kA

Documents

IPD Product Catalogue V17
