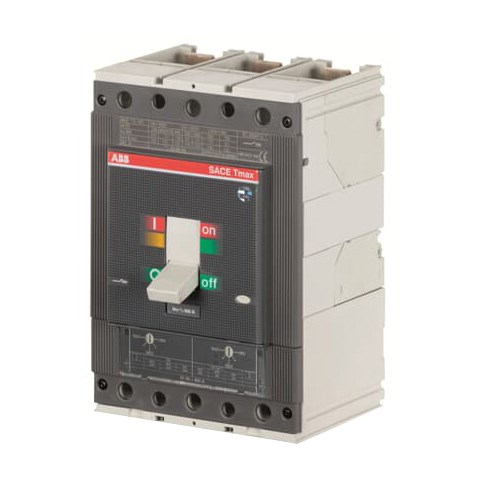

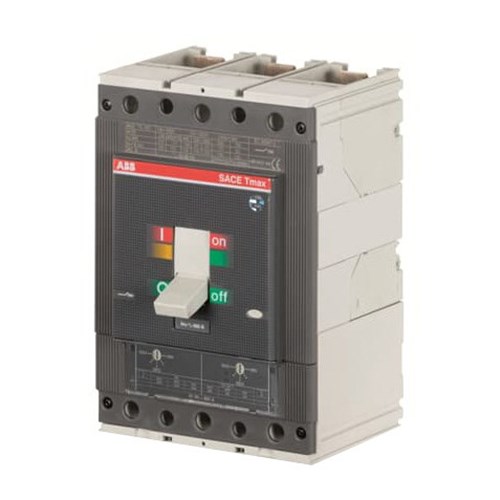

ABB 1SDA054525R1 Moulded Case Circuit Breaker 690VAC 100A 3-P 25kA Front For: T4

Product Code: 1SDA054525R1

  • Rated current of 100 A for reliable performance
  • Supports up to 690 VAC rated voltage
  • Breaking capacity of 25 kA ensures safety
  • Front connection type for easy installation
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Moulded Case Circuit Breaker
Brand
ABB
Series
SACE Tmax T

Electrical

Max. Rated Operation AC Voltage (Ue)
690V
Rated Impulse Withstand Voltage (Uimp)
8kV
Type of Protection Trip Unit
EL
Rated Current (In)
100A
Electrical Life
8000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
3.5kg
Width
105mm

Safety, Standards & Compliance

Standards and Approvals
IEC, CE, GL

Documents

IPD Product Catalogue V17
