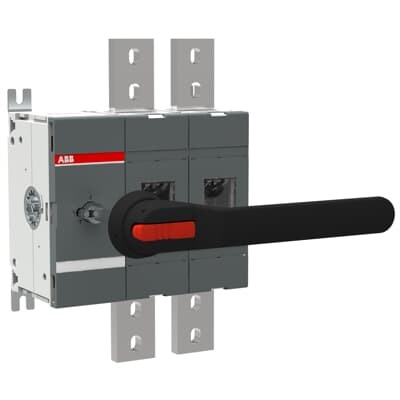

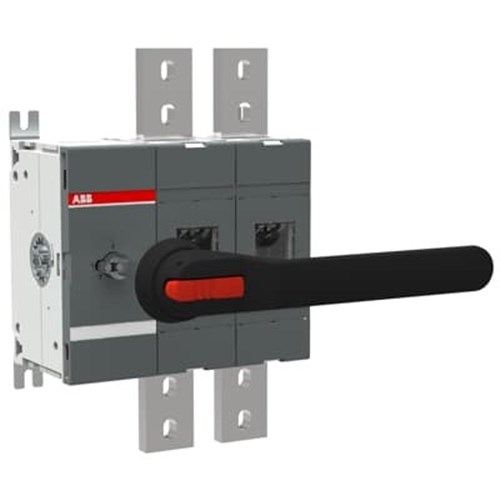

ABB 1600A 2P SWITCH-DISCONNECTOR OT1600E02P-135

Product Code: OT1600E02P-135

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Disconnector Switch
Brand
ABB
Application
Energy Storage System (ESS)

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Power Loss
96W
Rated Current (In)
1600A
Special Functions
No
Mechanical Life
600 cycles
No. of Poles
2P

Dimensions & Physical Data

Depth
148.5mm
Height
372mm
Weight
12.8kg
Width
254.5mm

Environmental

Pollution Degree
3
IP Rating
IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3, IEC 60335-2-40, CCC, CE, DNV GL

Documents

IPD Product Catalogue V17
