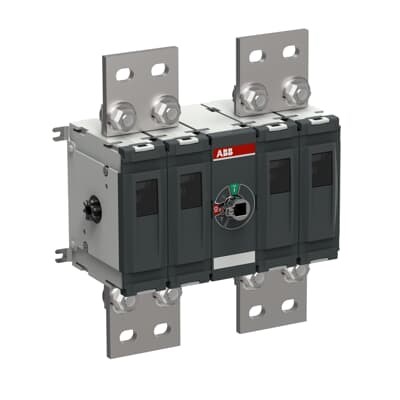

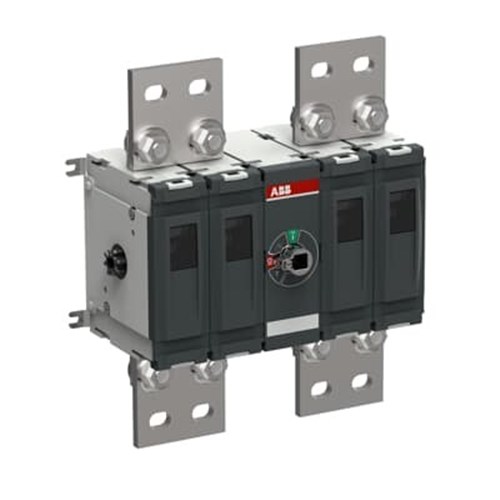

ABB 1000A 4P DISCONNECTOR OTDC1000FV22

Product Code: OTDC1000FV22

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switch - Disconnector
Brand
ABB
Series
OTDC
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
10kA for 1 s
Power Loss
per pole 30...32W; total 120...128W
Rated Current (In)
1000A
Special Functions
No
Mechanical Life
10000
No. of Poles
4P

Dimensions & Physical Data

Depth
135mm
Height
211mm
Weight
9.7kg
Width
255.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, -3

Documents

IPD Product Catalogue V17
