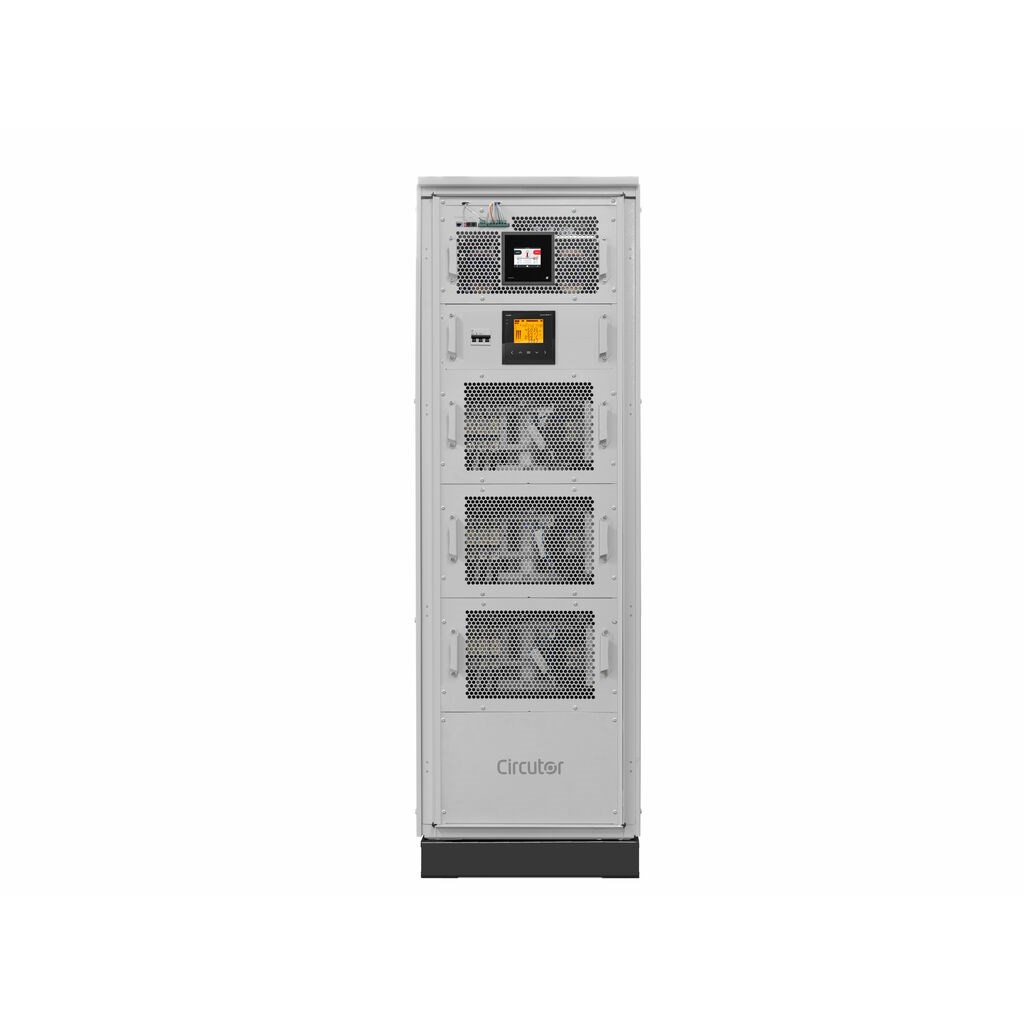

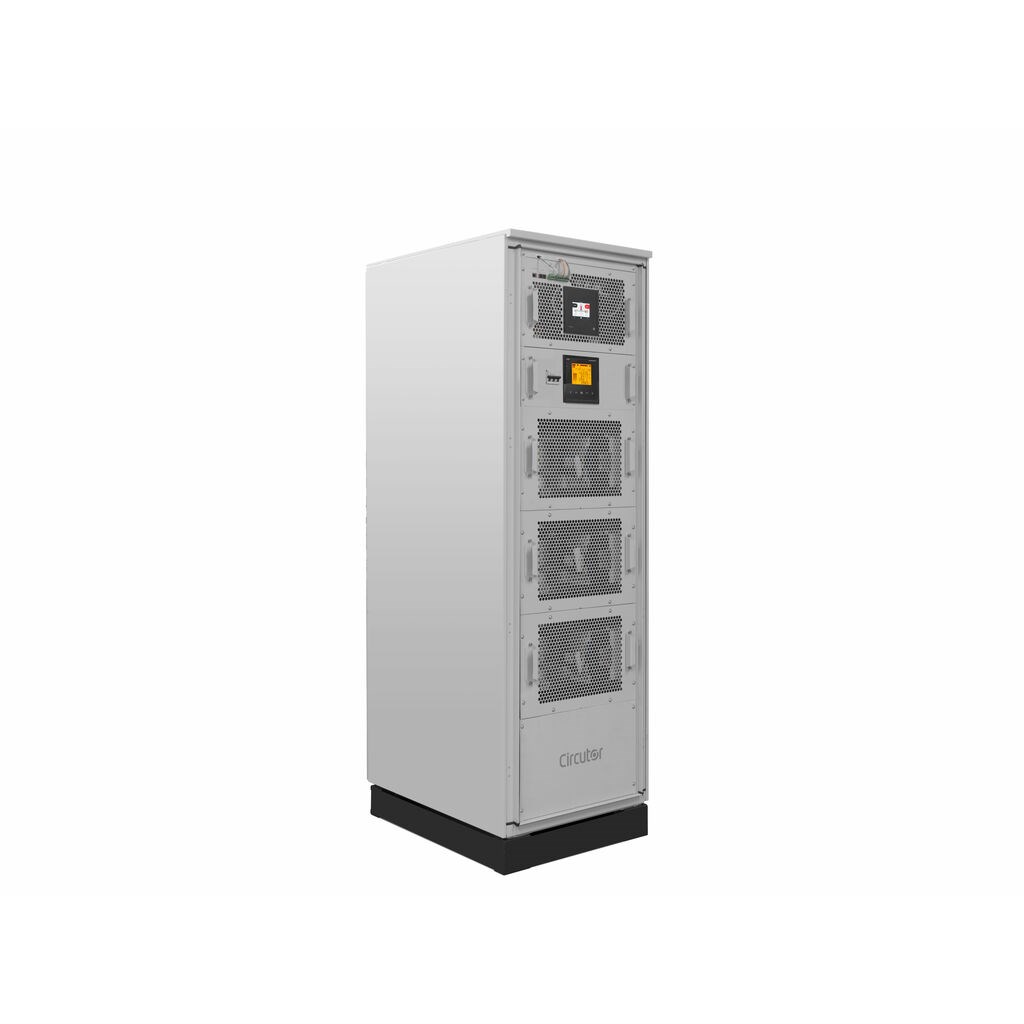

CIRCUTOR RG20F5 OPTIM HVG 400KVAR 440V OPTIM SVGm-400-440

Product Code: RG20F5

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Static VAR Generator
Brand
Circutor
Series
OPTIM-SVGm

Electrical

Earthing System
TN, TT
Rated Frequency
50 (± 5 %)
Rated Conditional Short-Circuit Current (Inc)
40kA
Voltage
400V ~ Ph-Ph ± 10%
ETIM 9.0 Class
EC002758
Installation Category (AC Supply)
4 kV, CAT III Class 1
Electrical Safety, Contamination Level/Class
Category 2
Electrical Safety, Maximum Height (M)
2000 m
Reinforcement Voltage
440V
Transformation Ratio
5/5A … 9000/5A
Consumption (Per Transformer)
1.5 VA per transformer

Dimensions & Physical Data

Depth
804mm
Height
1959mm
Weight
349
Width
627mm
Element
Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.

Environmental

Relative Humidity (Without condensation)
0% to 95%
Storage Temperature
-20°C to 50°C
IP Rating
IP20
Working Temperature
-10°C to 45°C
Noise Level
< 63 dBA

Documents

IPD Product Catalogue V17

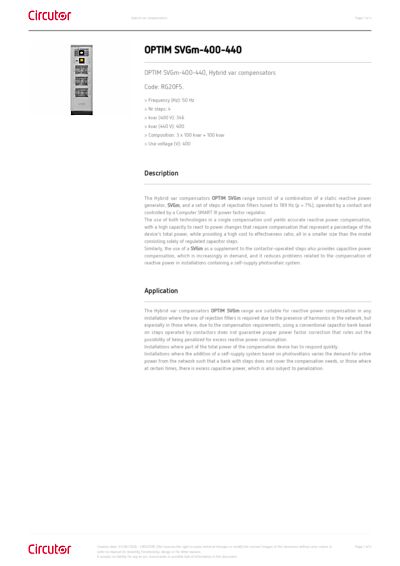

Circutor Datasheet

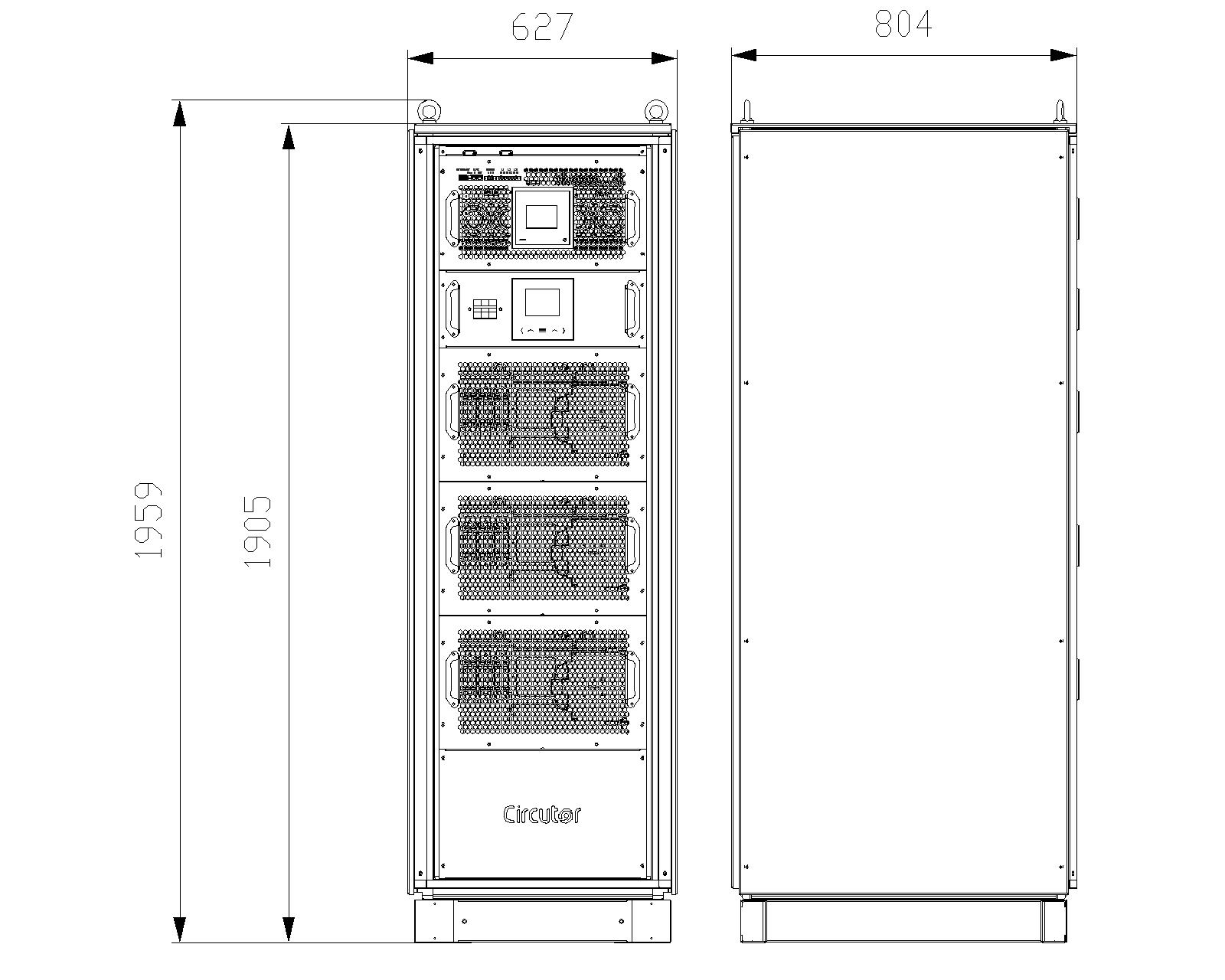

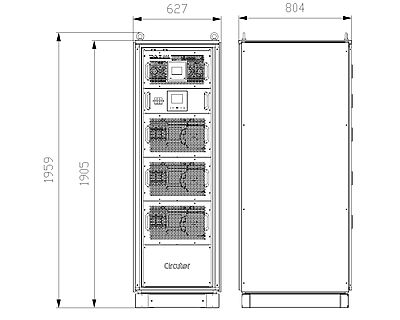

Circutor Dimensions

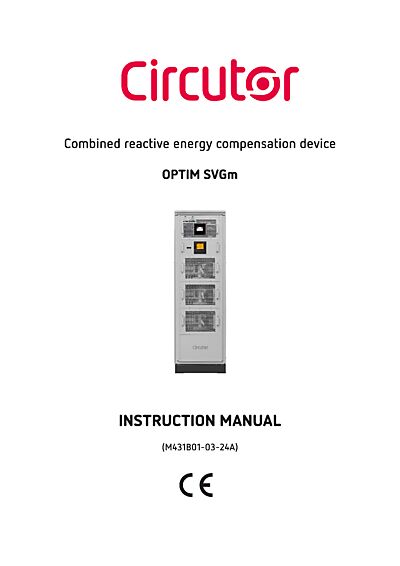

Circutor User Manual
