Specifications

Brand

Circutor

Series

OPTIM-SVGm

Earthing System TN, TT	Rated Frequency 50 (± 5 %)	Rated Conditional Short-Circuit Current (Inc) 40 kA
Voltage 400 V ~ Ph-Ph ± 10%	ETIM 9.0 Class EC002758	Installation Category (AC Supply) 4 kV, CAT III Class 1
Electrical Safety, Contamination Level/Class Category 2	Electrical Safety, Maximum Height (M) 2000 m	Protection Class IP20
Reinforcement Voltage 440 V	Transformation Ratio 5/5A … 9000/5A	Consumption (Per Transformer) 1.5 VA per transformer

Depth 804 mm	Height 1959 mm	Weight 261
Width 627 mm	Element Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.

Noise (dB) < 63 dBA	Relative Humidity (Without condensation) 0 ... 95 %	Storage Temperature -20 … +50 ºC
Working Temperature -10 … +45 ºC

Standards

IEC 61439-2

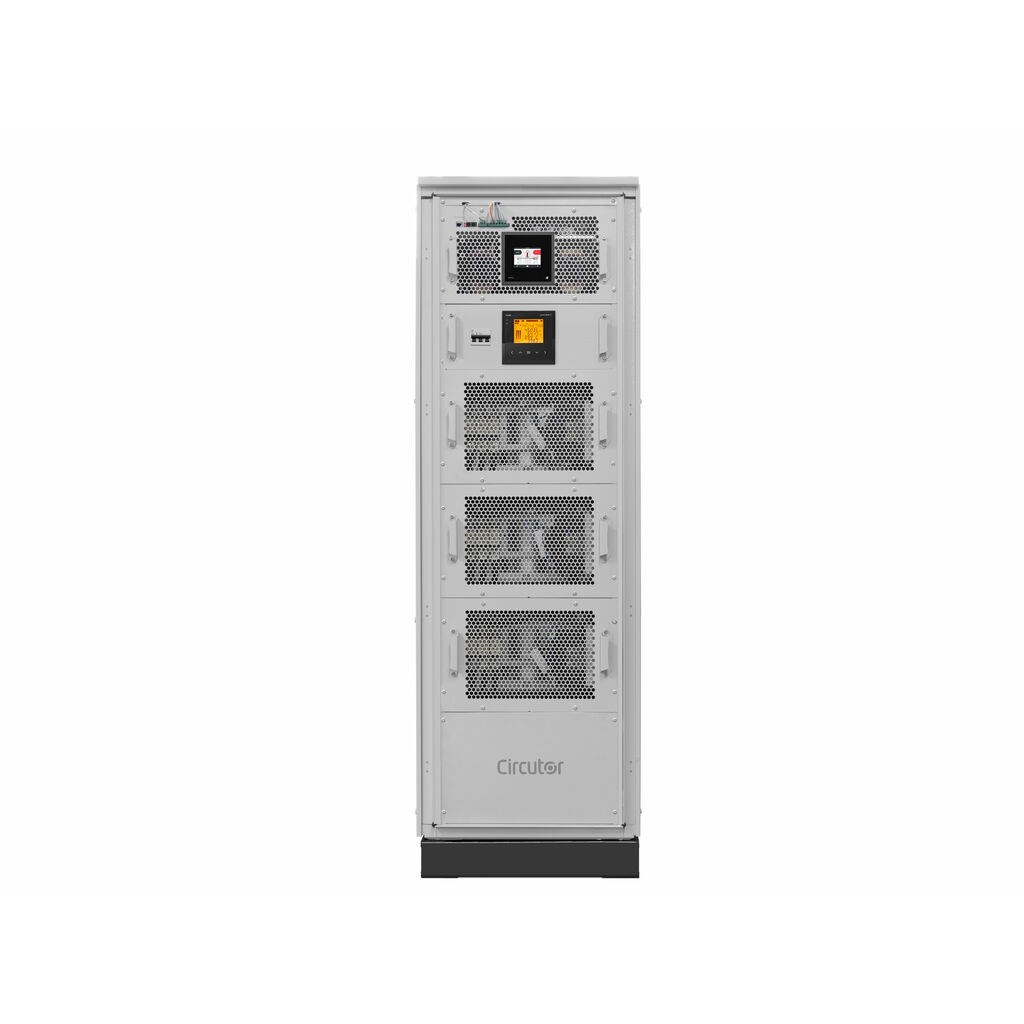

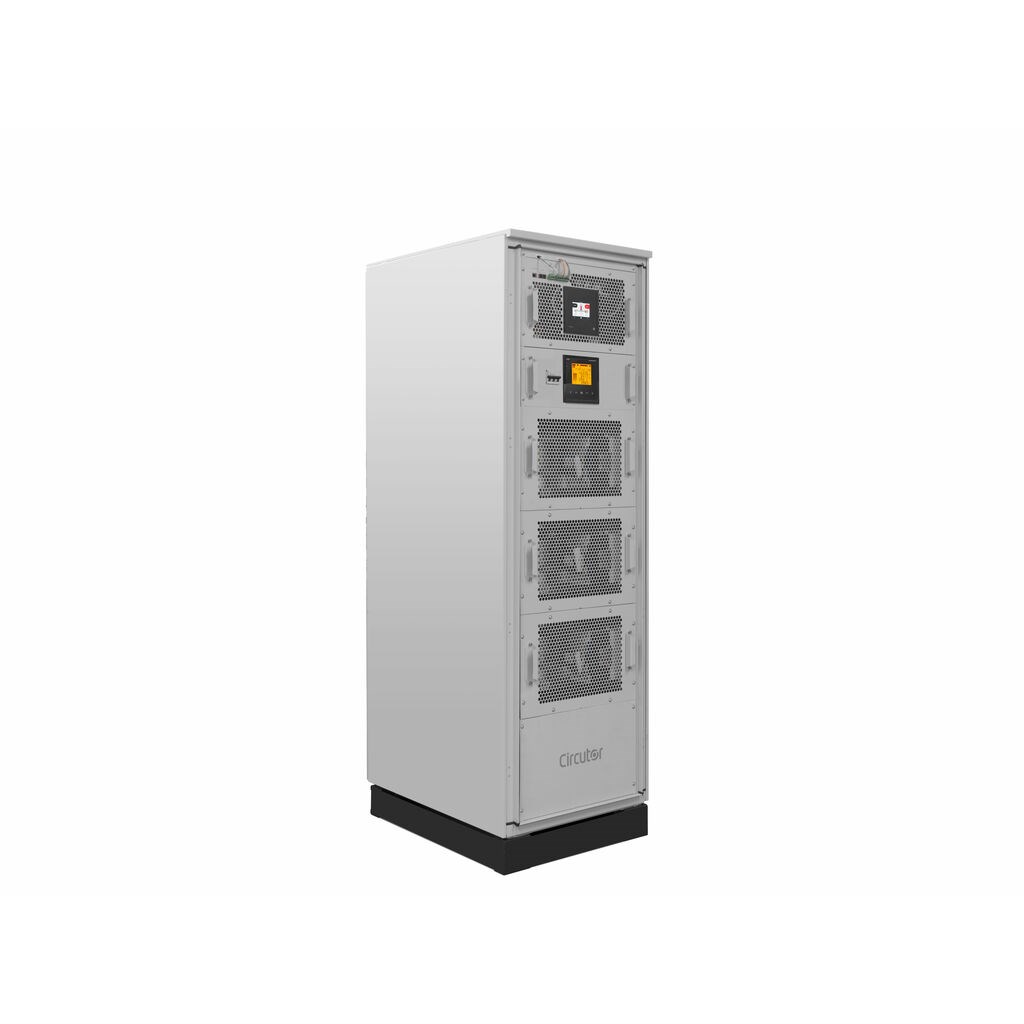

CIRCUTOR RG20F1 OPTIM HVG 200KVAR 440V OPTIM SVGm-200-440
