AFQm-C

Electrical

Connection Type Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45	Max. Phase Current 70 A (RMS)	Nominal Voltage (AC Primary) 208 … 690 V~ F-F (± 10 %)
Earthing System TN, TT	Rated Frequency 50 / 60 Hz (± 5 %)	Rated Power 66700 VA
Rated Conditional Short-Circuit Current (Inc) 40 kA	ETIM 9.0 Class EC002758	Installation Category (AC Supply) 4 kV, CAT III Class 1
Electrical Safety, Maximum Height (M) 5000	Protection Class IP 21 (IP 41 on demand) / IK10	Phase Compensation Selectable
Reactive Power Compensation Selectable	Rated Diversity Factor (RDF), Simultaneity 1	Rated Peak Current Ipk 84 kA
Current Crest Factor 2:1	Transformation Ratio 5 … 5000 / 5A	Voltage Harmonics (THD) 25 % (max)
Max. Neutral Current 210 A (RMS)

Mechanical

Parallel Assembly / Installation

Up to 100 units, with different gauges. CTs connection only to the "master" unit Advanced management algorithm: Maximizes the life of the devices (alternate operation of devices). Maximises operational efficiency (Only the necessary filters are activated). Allows redundancy (system operation in the event of device malfunction).

Priority Scheduling

Selectable

Display Type

TFT color, 3.5" touchscreen

Dimensions & Physical Data

Depth 812 mm	Height 1890 mm	Weight 192
Width 608 mm	Communications Cable Cross-Section RS-485: 2.5 mm²	Cable Gauge at Power Supply Terminals Grid: Ø 23 mm
Cable Gauge at Current Terminals 2.5 mm²

Environmental

Noise (dB) < 70 dBA	Relative Humidity (Without condensation) 0 ... 95 %	Storage Temperature -20 ... +50 ºC
Working Temperature -10 ... +45 ºC

Communication & Control

Filtering / Response Time 2º … 50º harmonic (selectable) / < 100 µs	Protocol (Network) TCP/IP, Modbus TCP	Protocol (Serial) Modbus/RTU
Technology / Interface Ethernet	Technology / Type (Serial) RS-485

Safety, Standards & Compliance

Standards

IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1

CIRCUTOR R7NF6P AFQM ACTIVE FILTER 70A 550V 4-WIRE CABINET AFQm-4WP-070C-550

Product Code: R7NF6P

Need full access to stock, pricing, and ordering?

Specifications

General

Electrical

Mechanical

Dimensions & Physical Data

Environmental

Communication & Control

Safety, Standards & Compliance

Documents

IPD Product Catalogue V17

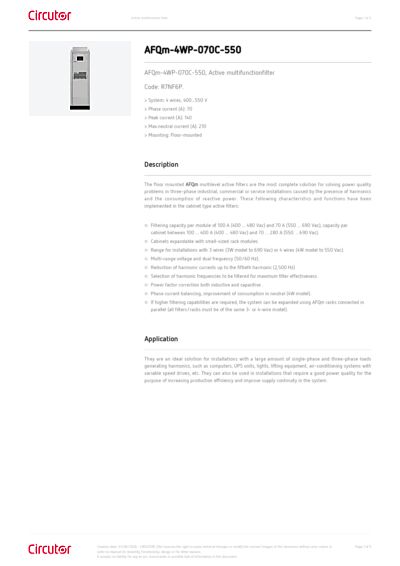

Circutor Datasheet
