Brand

Circutor

Series

AFQm-R

Connection Type Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45	Max. Phase Current 70 A (RMS)	Nominal Voltage (AC Primary) 208 … 690 V~ F-F (± 10 %)
Earthing System TN, TT	Rated Frequency 50 / 60 Hz (± 5 %)	Rated Power 83650 VA
Rated Conditional Short-Circuit Current (Inc) 40 kA	ETIM 9.0 Class EC002758	Installation Category (AC Supply) 4 kV, CAT III Class 1
Electrical Safety, Maximum Height (M) 3000 (2000 m without performance degradation)	Protection Class IP 20	Reactive Power Compensation selectable
Rated Diversity Factor (RDF), Simultaneity 1	Rated Peak Current Ipk 84 kA	Current Crest Factor 2:1
Transformation Ratio 5 … 5000 / 5A	Voltage Harmonics (THD) 25 % (max)

Parallel Assembly / Installation

Up to 100 devices of different caliber. Connection of transformers only in Master unit.

Priority Scheduling

selectable

Display Type

TFT color, 3.5" touchscreen

Depth 714.5 mm	Height 266 mm	Weight 55
Width 482.5 mm	Communications Cable Cross-Section RS-485: 2.5 mm²	Cable Gauge at Power Supply Terminals Grid: Ø 23 mm
Cable Gauge at Current Terminals 2.5 mm²

Noise (dB) < 70 dBA	Relative Humidity (Without condensation) 0 ... 95 %	Storage Temperature -20 ... +50 ºC
Working Temperature -10 ... +45 ºC

Filtering / Response Time 2º … 50º harmonic (selectable) / < 100 µs	Protocol (Network) TCP/IP, Modbus TCP	Protocol (Serial) Modbus/RTU
Technology / Interface Ethernet	Technology / Type (Serial) RS-485

Standards

IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1

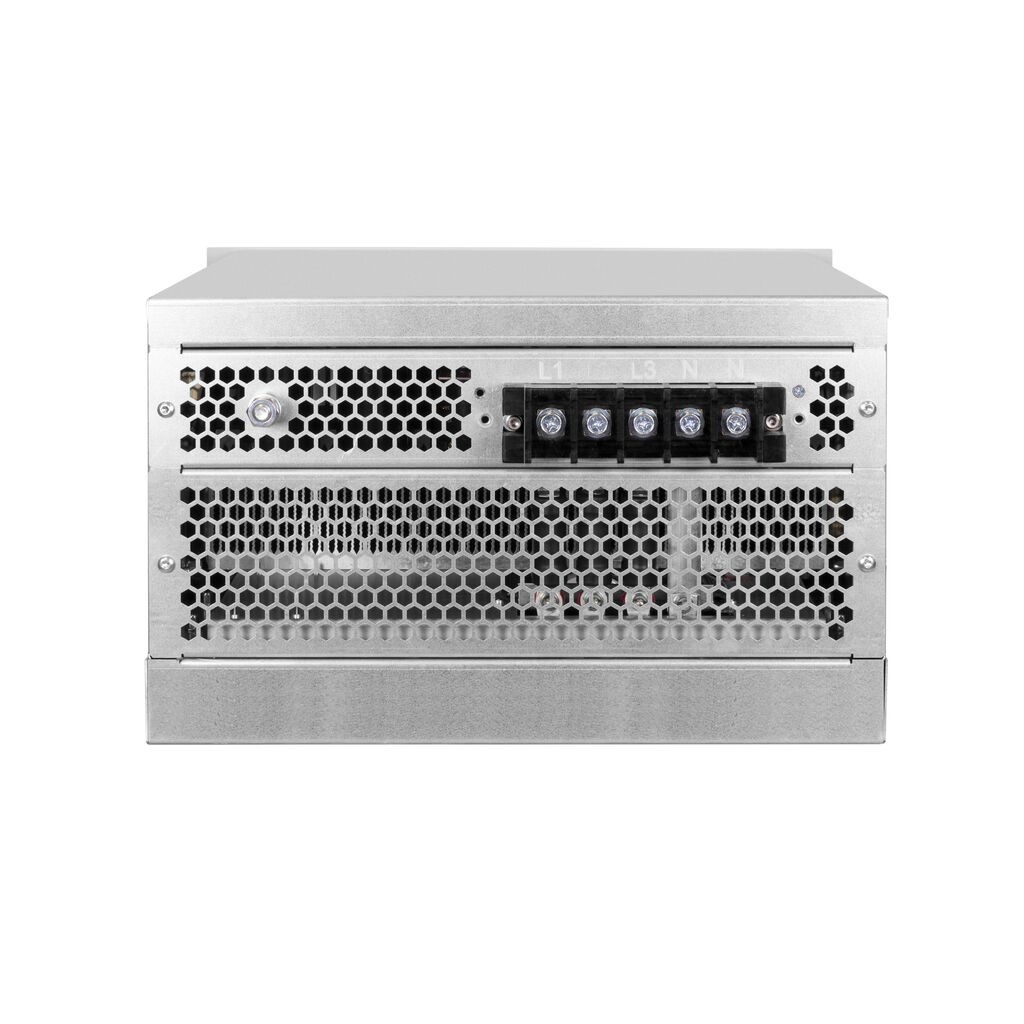

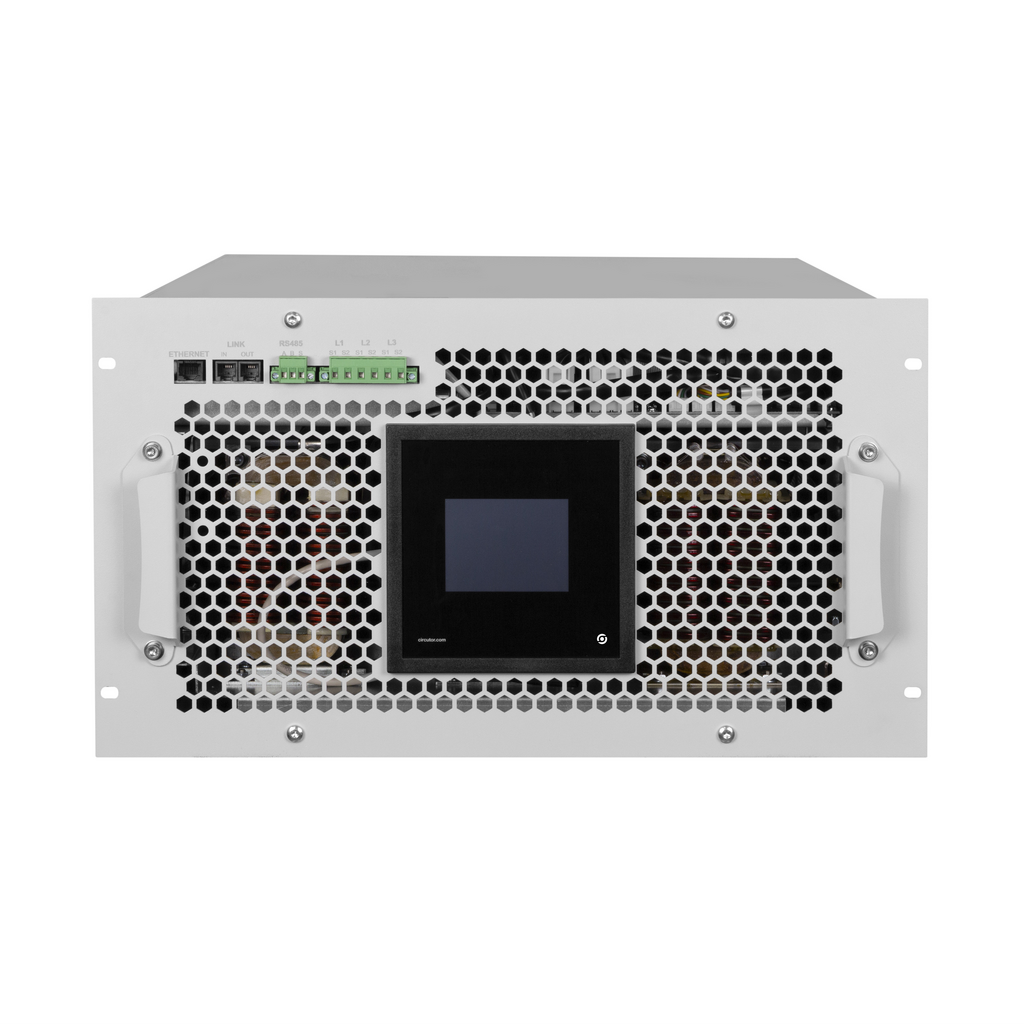

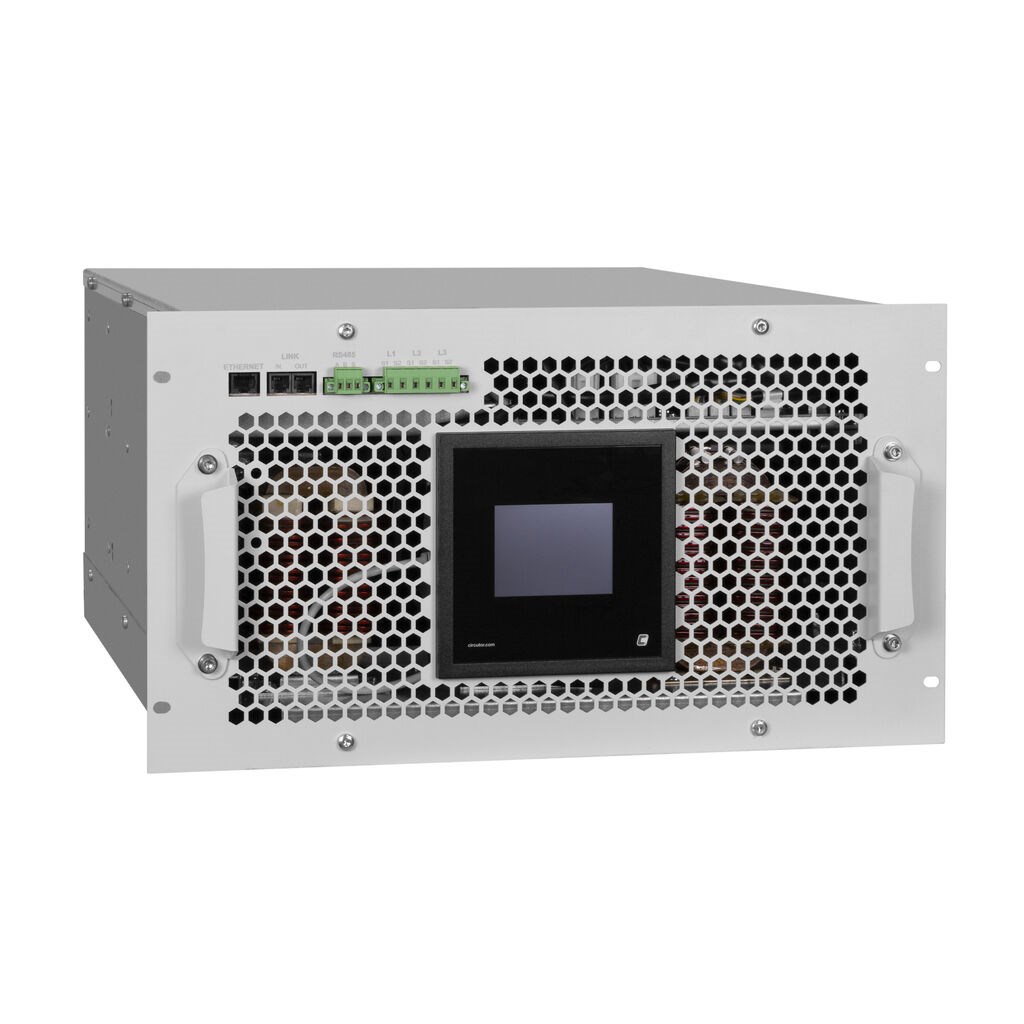

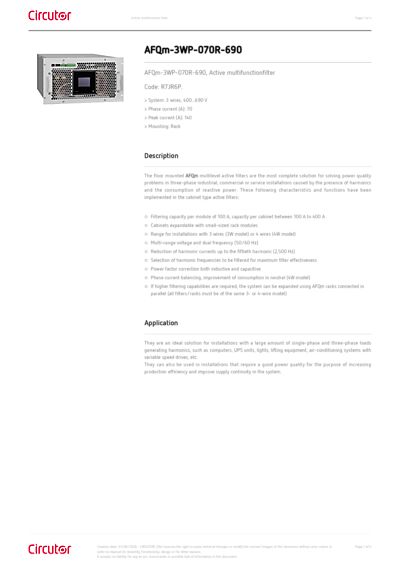

CIRCUTOR R7JR6P AFQM ACTIVE FILTER 70A 690V 3-WIRE RACK AFQm-3WP-070R-690

Specifications
