Specifications

Brand

Circutor

Series

AFQm-C

Connection Type Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45	Max. Phase Current 70 A (RMS)	Nominal Voltage (AC Primary) 208 … 550 V~ F-F (± 10 %)
Earthing System TN, TT	Rated Frequency 50 / 60 Hz (± 5 %)	Rated Power 83650 VA
Rated Conditional Short-Circuit Current (Inc) 40 kA	ETIM 9.0 Class EC002758	Installation Category (AC Supply) 4 kV, CAT III Class 1
Electrical Safety, Maximum Height (M) 5000	Protection Class IP 21 (IP 41 on demand) / IK10	Phase Compensation Selectable
Reactive Power Compensation Selectable	Rated Diversity Factor (RDF), Simultaneity 1	Rated Peak Current Ipk 84 kA
Current Crest Factor 2:1	Transformation Ratio 5 … 5000 / 5A	Voltage Harmonics (THD) 25 % (max)

Parallel Assembly / Installation

Up to 100 devices of different caliber. Connection of transformers only in Master unit.

Priority Scheduling

Selectable

Display Type

TFT color, 3.5" touchscreen

Depth 812 mm	Height 1890 mm	Weight 192
Width 608 mm	Communications Cable Cross-Section RS-485: 2.5 mm²	Cable Gauge at Power Supply Terminals Grid: Ø 23 mm
Cable Gauge at Current Terminals 2.5 mm²

Noise (dB) < 70 dBA	Relative Humidity (Without condensation) 0 ... 95 %	Storage Temperature -20 ... +50 ºC
Working Temperature Working temperature

Filtering / Response Time 2º … 50º harmonic (selectable) / < 100 µs	Protocol (Network) TCP/IP, Modbus TCP	Protocol (Serial) Modbus/RTU
Technology / Interface Ethernet	Technology / Type (Serial) RS-485

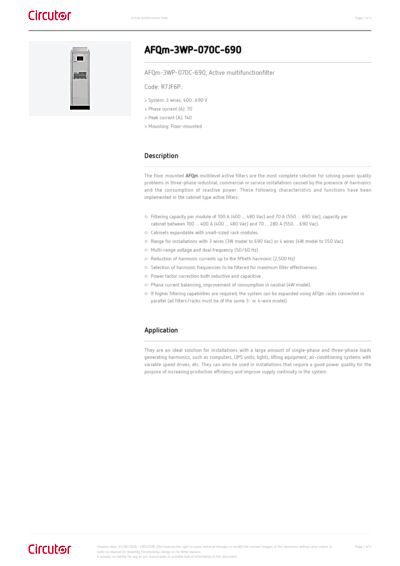

CIRCUTOR R7JF6P AFQM ACTIVE FILTER 70A 690V 3-WIRE CABINET AFQm-3WP-070C-690
