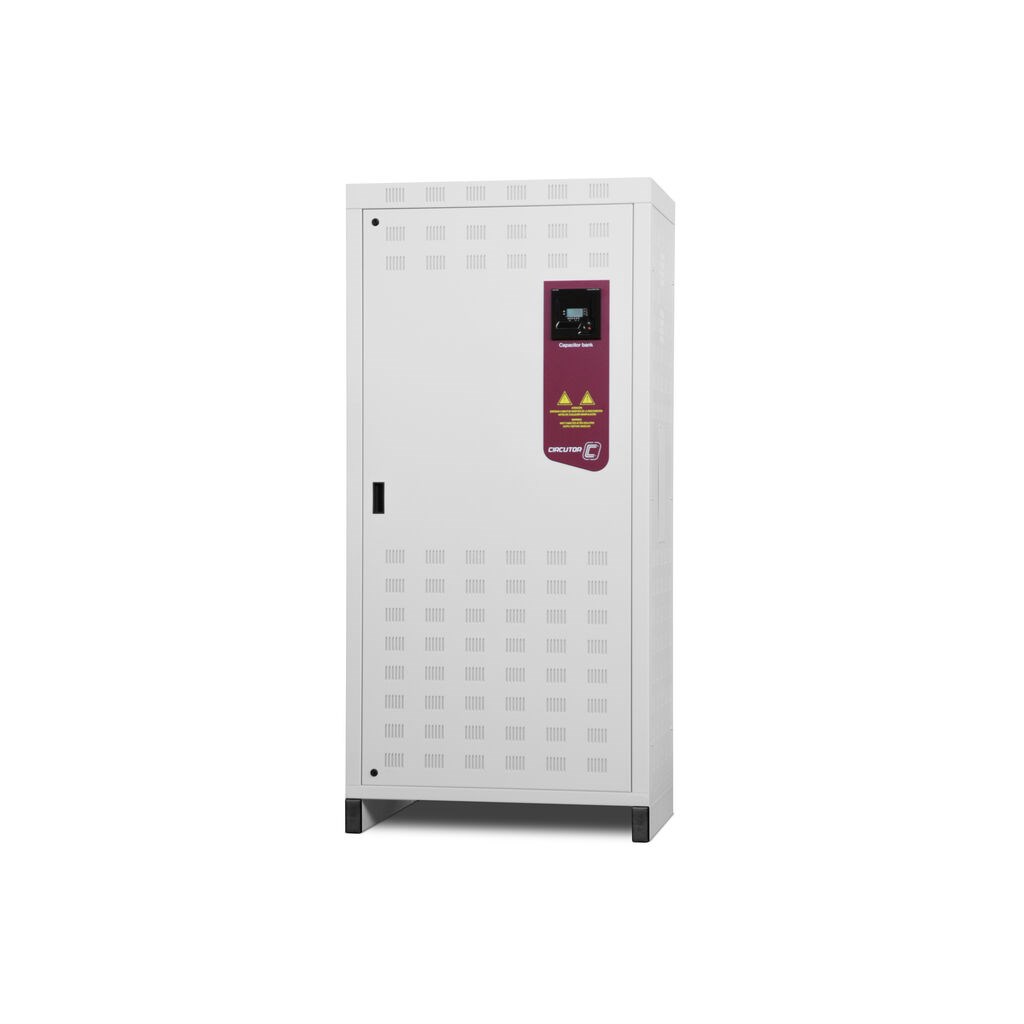

CIRCUTOR R64E30 OPTIM STATIC DET 300 kVAr 440V 50Hz OPTIM FRE4-300-440

Static Var Generator

Circutor

OPTIM FRE

400V (50 Hz) (other voltages on request)

EC002758

2000 m

10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours

75 V / 3 min

-0.5

< 0,5W/kvar

440V

In / 5A

1.3 In

Vertical / Self-supporting

Sheet metal RAL 7035 Grey / RAL 3005 Garnet

CLZ capacitor Static switching unit on each stage, made up of static contactors (thyristors) Two-pole circuit breaker protection for capacitor bank and regulator operations. Reactive energy regulator of the Computer MAX-f Built-in thermostat on the heatsink for disconnecting the stage in the case of excessive temperatures (90 ºC) Detuned filters tuned to 189 Hz for protection against harmonics present in the network and for preventing resonance with harmonics of the 5th order or higher.

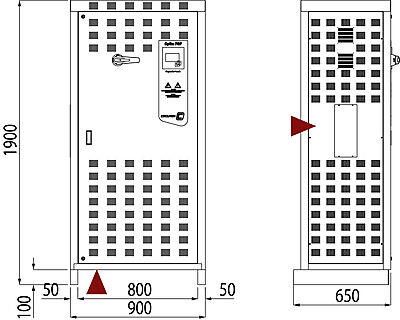

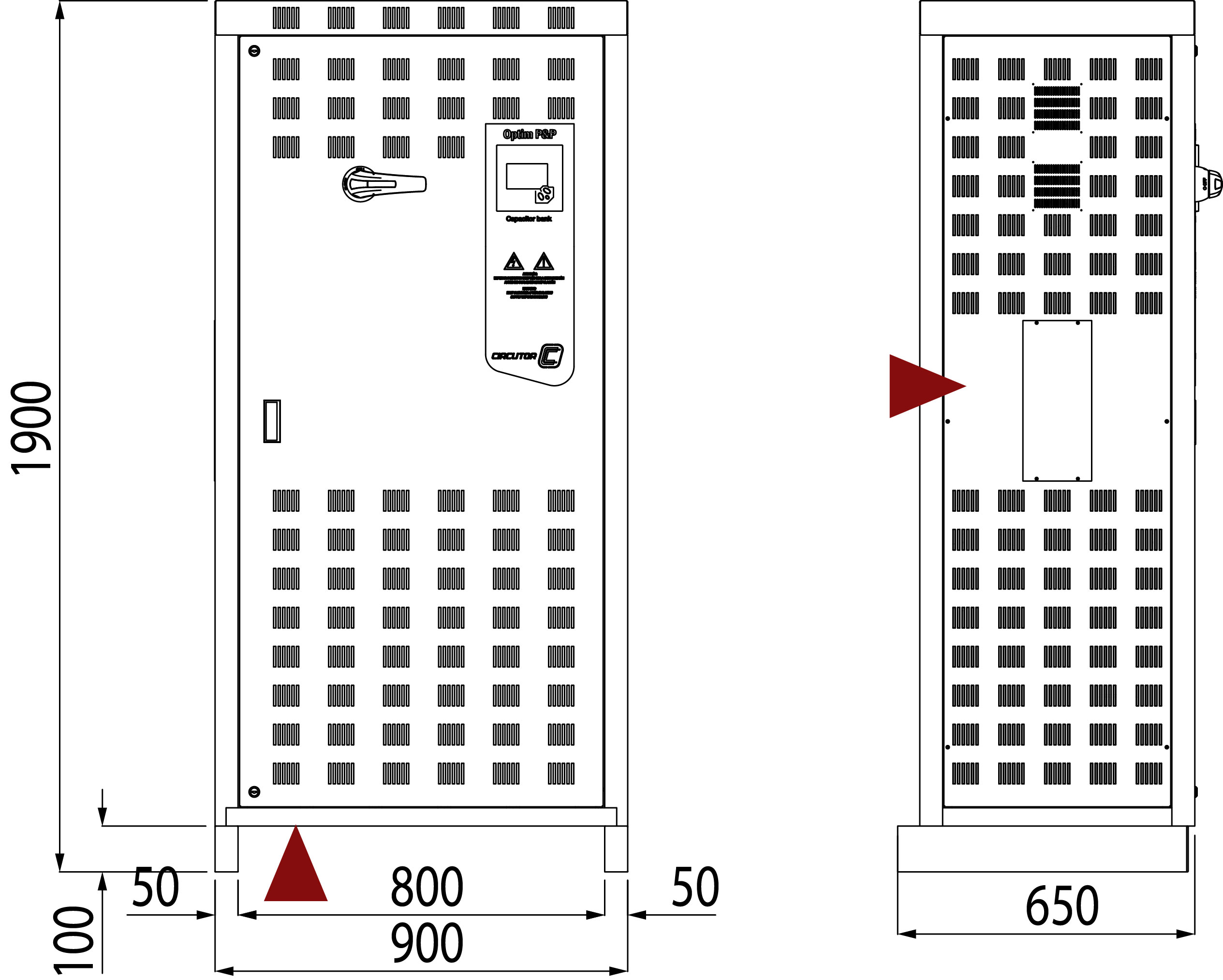

650mm

1900mm

290

900mm

Protection by stage by fuses with high cut-off power (APR). NH-00 series.

0.8

IP 21

Tª class D: Daily average: 45°C, annual average: 35°C, maximum: 55°C, minimum: -50°C

Natural or forced according to options

Manual switch on capacitor bank header Circuit breaker on capacitor bank header Circuit breaker + earth leakage protection on capacitor bank header Forced ventilation unit + thermostat Polycarbonate sheet for protection against direct contacts 400/230 V autotransformer
