Product Code: R5Y380.00S0000

Specifications

General

Product Type

Detuned Filter

Brand

Circutor

Series

OPTIM FRM

Electrical

ETIM 9.0 Class EC002758	Electrical Safety, Maximum Height (M) 2000 m	Surge 19 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance 75 V / 3 min	Tolerance ±10 %	Losses (W) Dielectric: < 0.2W/kvar Total: < 0.5W/kvar
Reinforcement Voltage 440V	Permanent Overload (Per Transformer) 1.3 In

Mechanical

Fastening/Setting

Vertical

Components

CF Capacitor General tripolar circuit breaker for protection. Waste filters tuned to 189 Hz to protect harmonics present in the network and avoid resonance phenomena with harmonics of order 5 or more. It incorporates a thermostat to disconnect the step in case of high temperature (90 ºC).

Dimensions & Physical Data

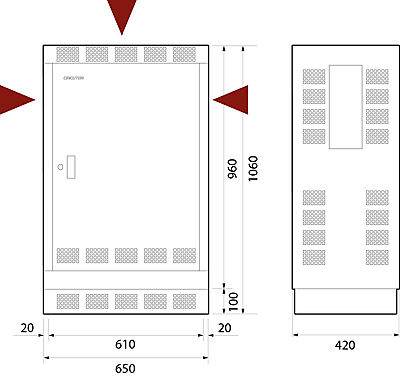

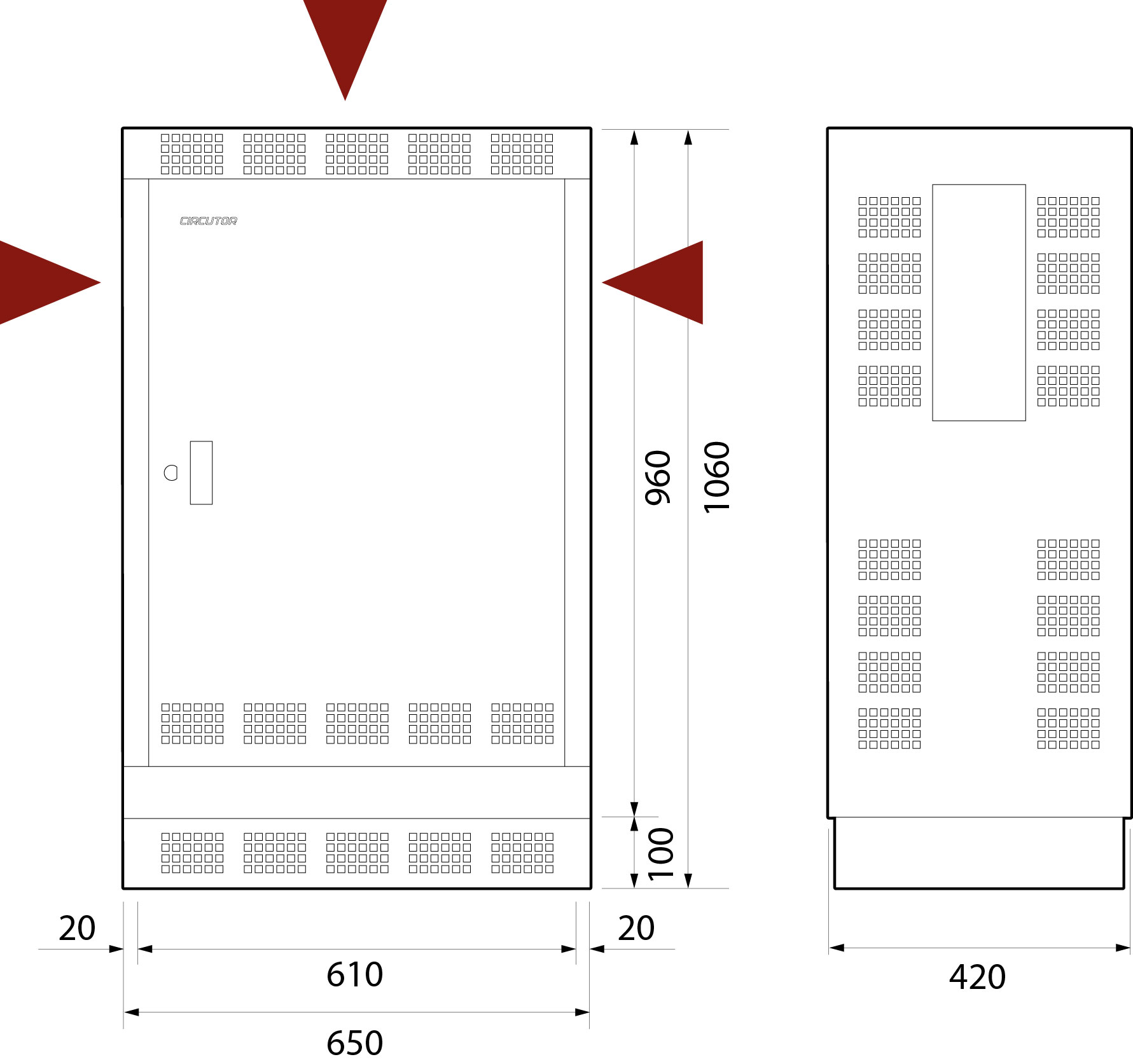

Depth 420mm	Height 1060mm	Weight 78
Width 650mm	Element Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.

Environmental

Relative Humidity (Without condensation)

0.8

IP Rating

IP 21

Thermal Management

Natural or forced according to options

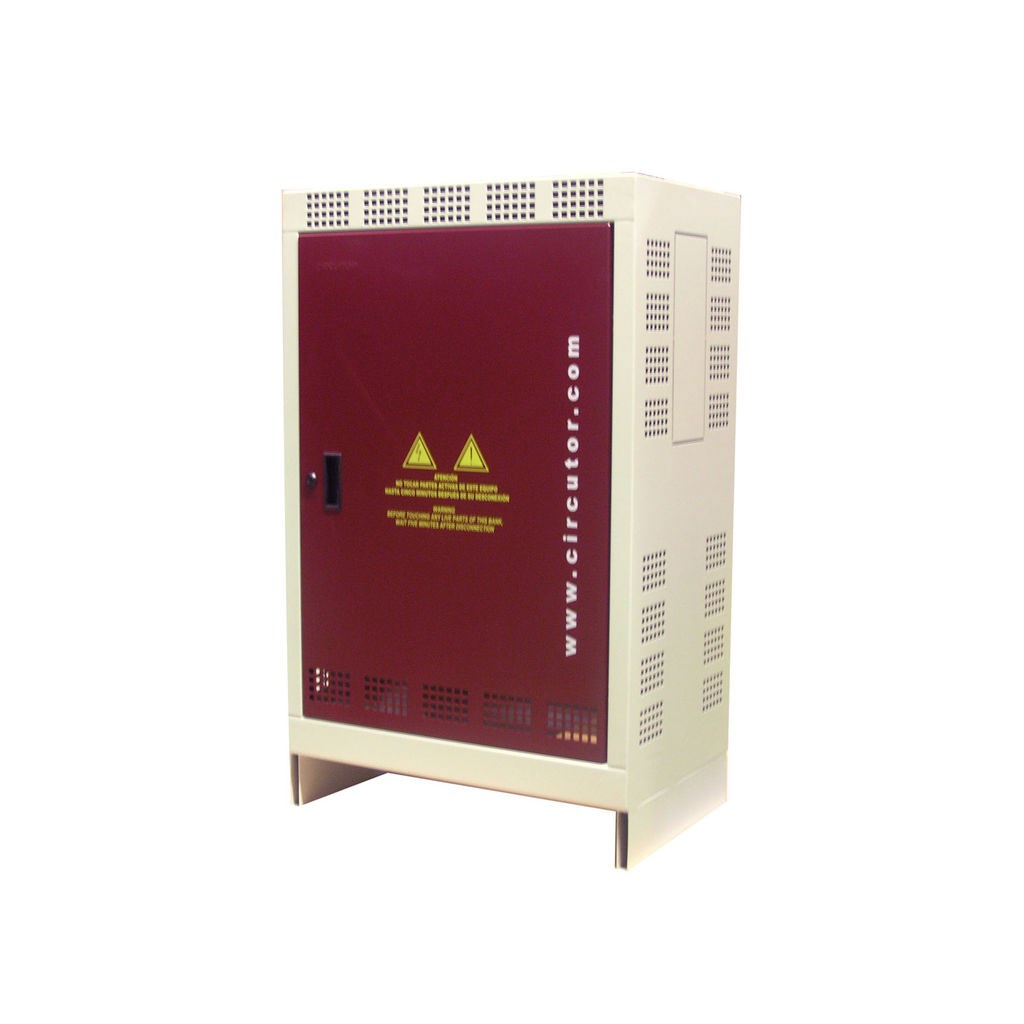

CIRCUTOR R5Y380 OPTIM FIXED FILT 50 kVAr 440V W/MCCB OPTIM FRM-50-440

Product Code: R5Y380.00S0000

Need full access to stock, pricing, and ordering?

Specifications

General

Electrical

Mechanical

Dimensions & Physical Data

Environmental

Documents

IPD Product Catalogue V17

CE Certification

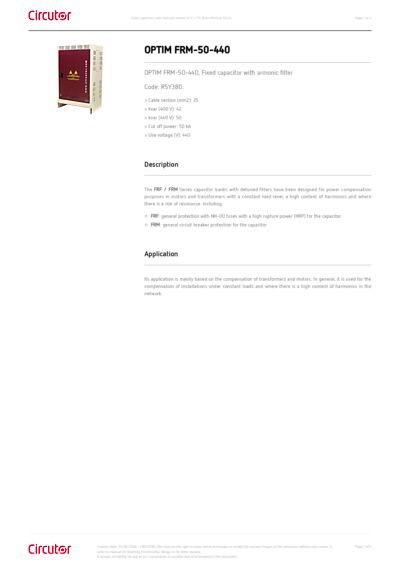

Circutor Datasheet
