Specifications

Product Type

Detuned Filter

Brand

Circutor

Series

OPTIM FRF

ETIM 9.0 Class EC002758	Electrical Safety, Maximum Height (M) 2000 m	Surge 12 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance 75 V / 3 min	Tolerance ±10 %	Losses (W) Dielectric: < 0.2W/kvar Total: < 0.5W/kvar
Reinforcement Voltage 440V	Permanent Overload (Per Transformer) 1.3 In

Fastening/Setting

Vertical

Components

CF capacitor General protection by fuse with high breaking capacity (APR). NH-00 series.

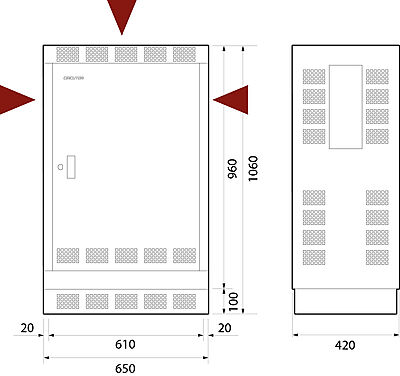

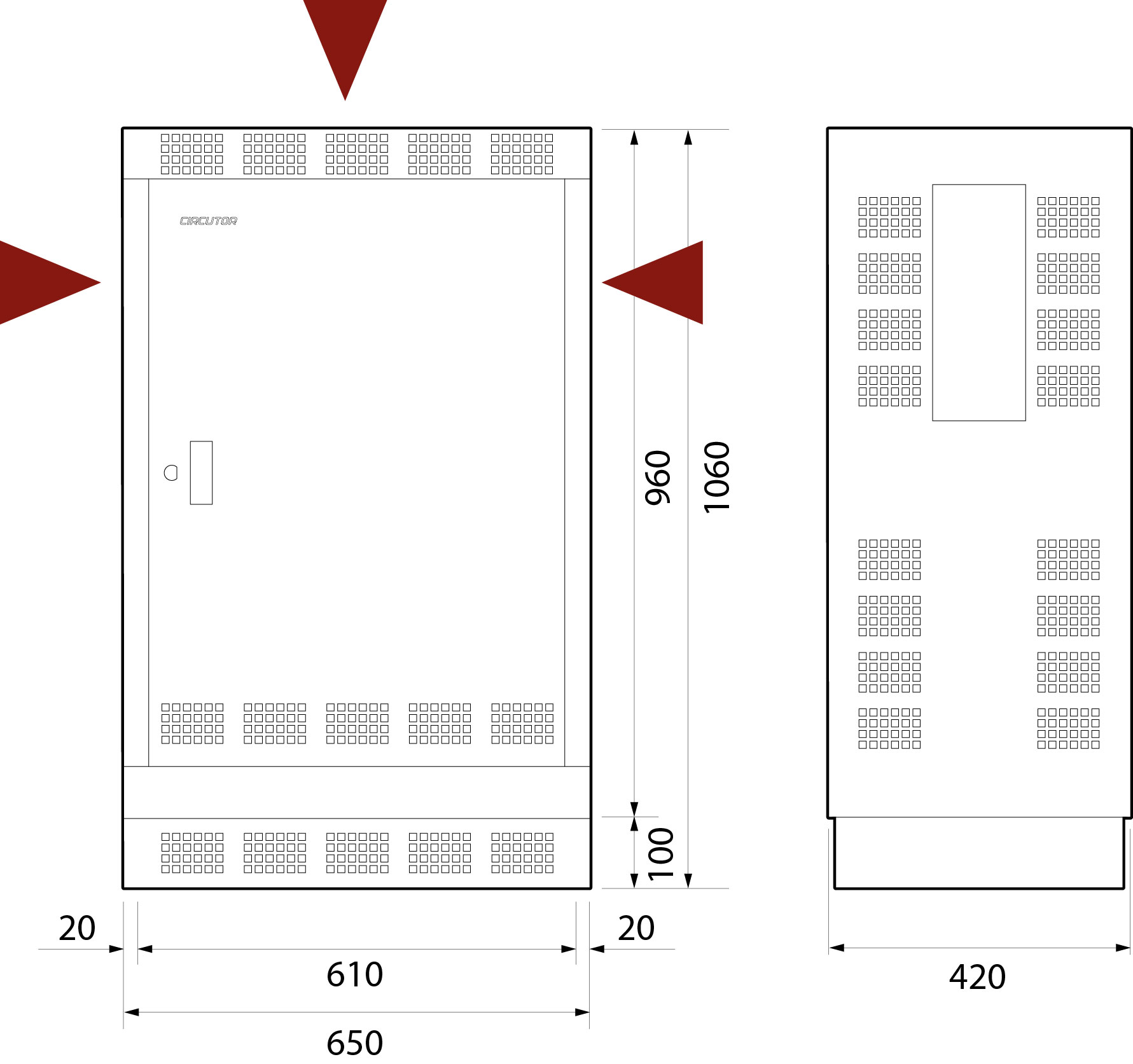

Depth 420mm	Height 1060mm	Weight 82
Width 650mm	Element Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.

Relative Humidity (Without condensation)

0.8

IP Rating

IP 21

Thermal Management

Natural or forced according to options

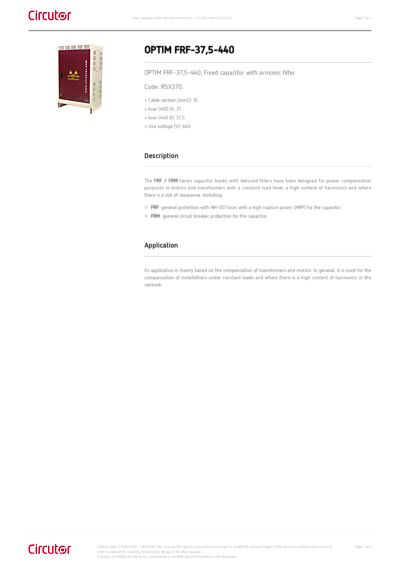

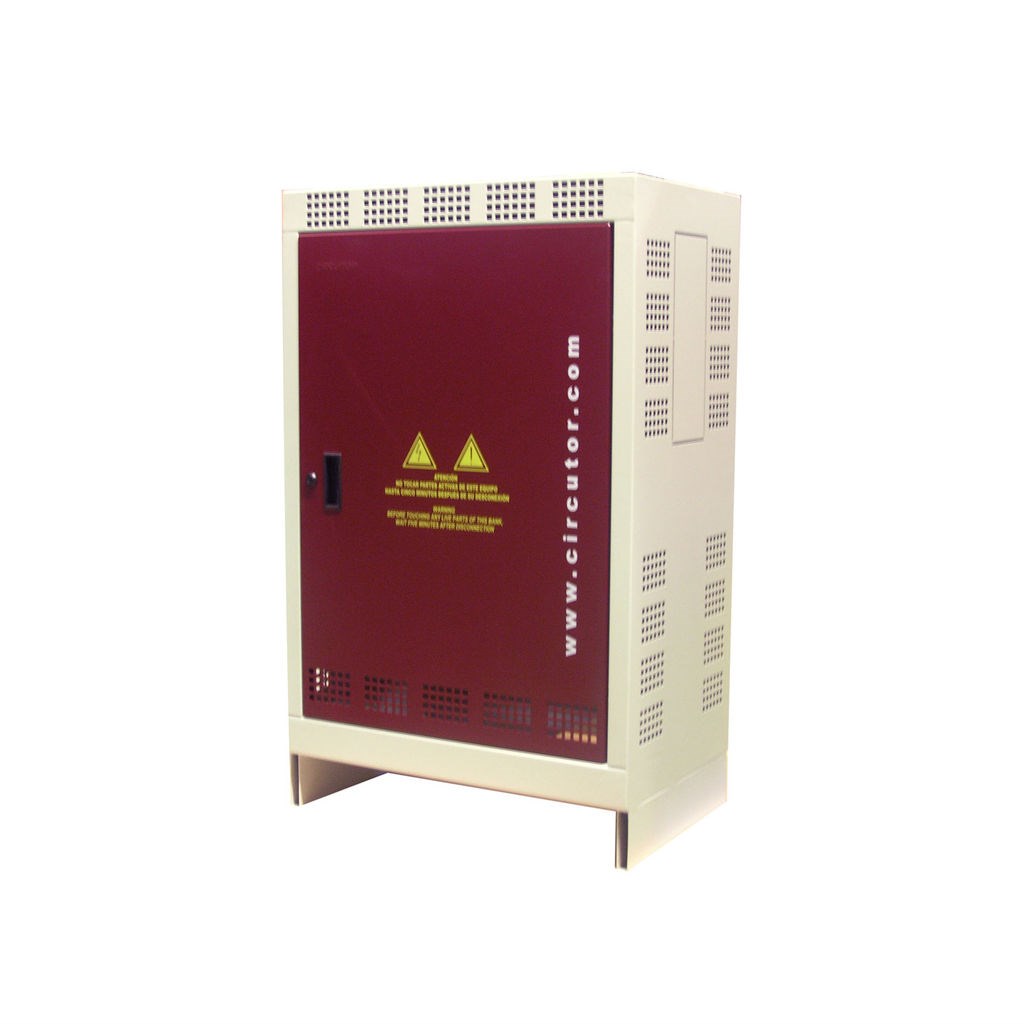

CIRCUTOR R5X370 OPTIM FIXED FILT 37.5 kVAr 440V W/FUSE OPTIM FRF-37,5-440
