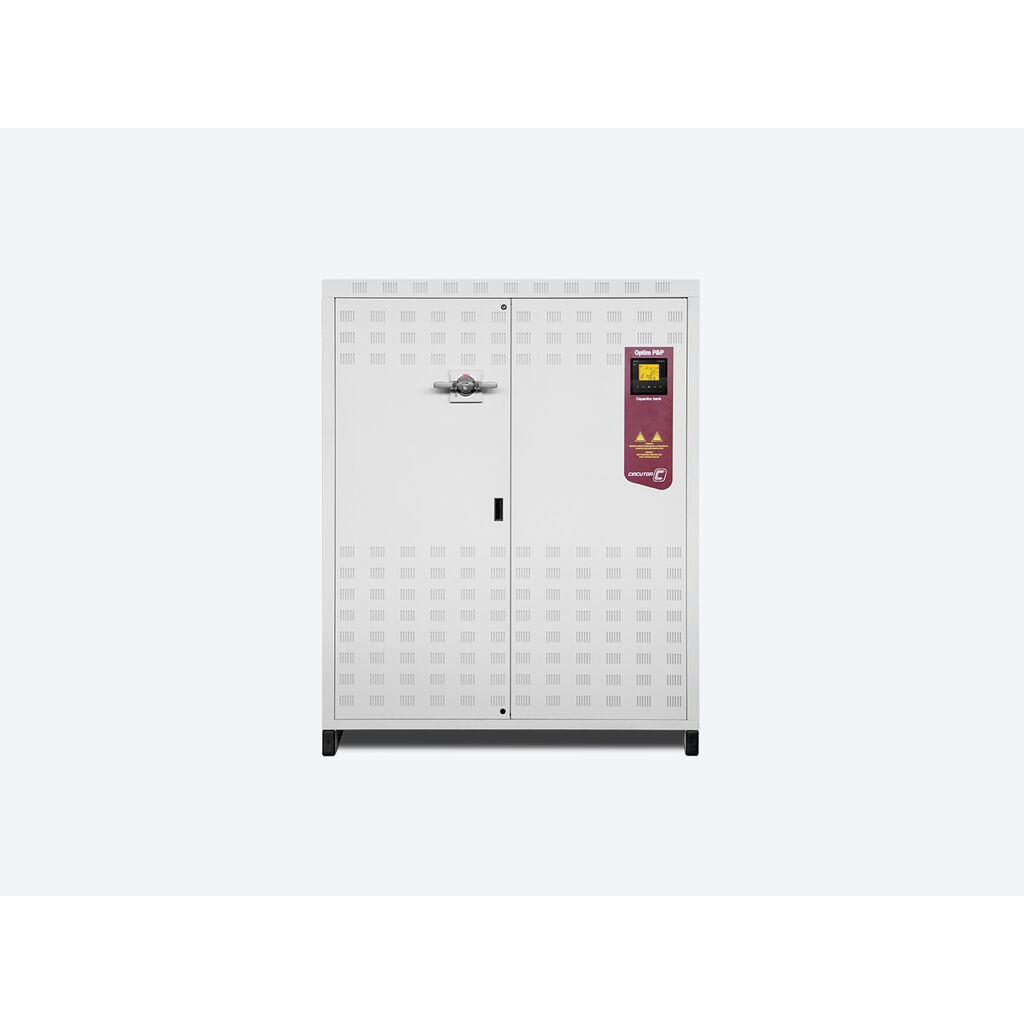

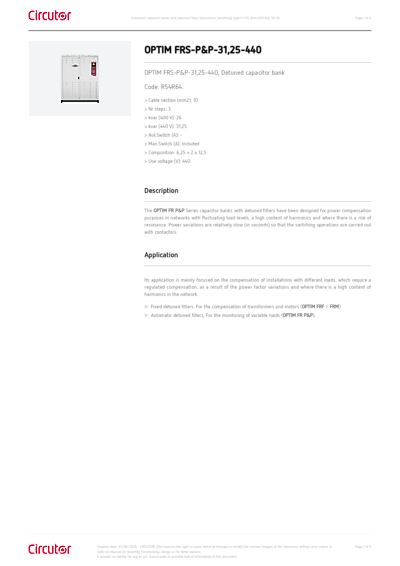

CIRCUTOR R54R64 OPTIM DETUNED P&P 31.25 kVAr 440V DETUNED OPTIM FRS-P&P-31,25-440

Detuned Power Factor Correction Panel

Circutor

OPTIM FR P&P

400V (50 Hz) (other voltages on request)

EC002758

2000 m

10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours

75 V / 3 min

-0.5

< 0,5W/kvar

440V

Contactors: 230V

In / 5A

1.3 In

Vertical / Self-supporting

Sheet metal RAL 7035 Grey / RAL 3005 Garnet

CLZ capacitor (460 V) Contactors with pre-insertion block and quick discharge resistor Two-pole protection circuit-breaker for capacitor bank and regulator operations. Power factor regulator of the computer Max series. Detuned filters tuned at 189 Hz (50 Hz) /227 Hz (60 Hz) for the protection against harmonics present in the network and to avoid the problems of resonance with fifth or higher order harmonics. Built-in thermostat for the disconnection of the step in case of excessive temperatures (90 ºC). Auto-transformer.

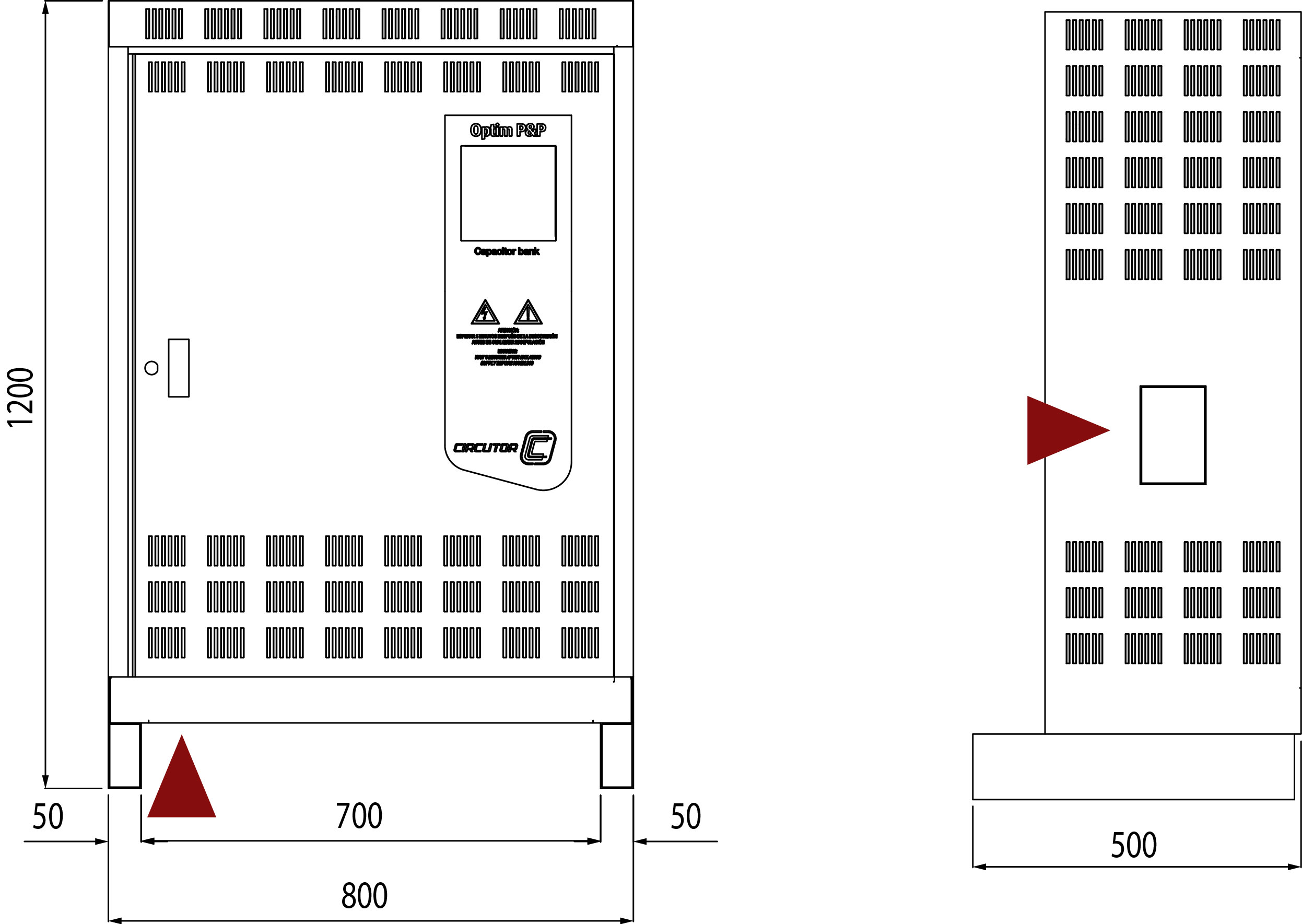

500mm

1200mm

82

800mm

Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.

0.8

IP 21

Tª class D: Daily average: 45°C, annual average: 35°C, maximum: 55°C, minimum: -50°C

Natural or forced according to options

Manual capacitor bank header switch Automatic capacitor bank header switch Automatic switch + Earth leakage protection at the capacitor bank’s header Forced ventilation unit + thermostat Polycarbonate plate to protect against direct contacts
