Specifications

Product Type

Static Switch

Brand

Circutor

Series

EMB-2PH

Rated Frequency 50Hz to 60Hz	Voltage Up to 3 x 440 V~ (without detuned filters) Up to 3 x 415 V~ (with detuned filters)	ETIM 9.0 Class EC002024
Du/Dt RC protection at 1000 V/µs	Di/Dt 100 A/µs (L = 12 µH, not included, must be assembled in series with the condenser)

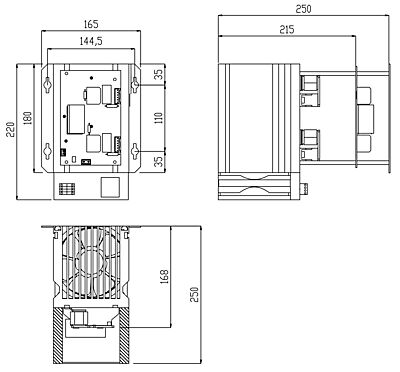

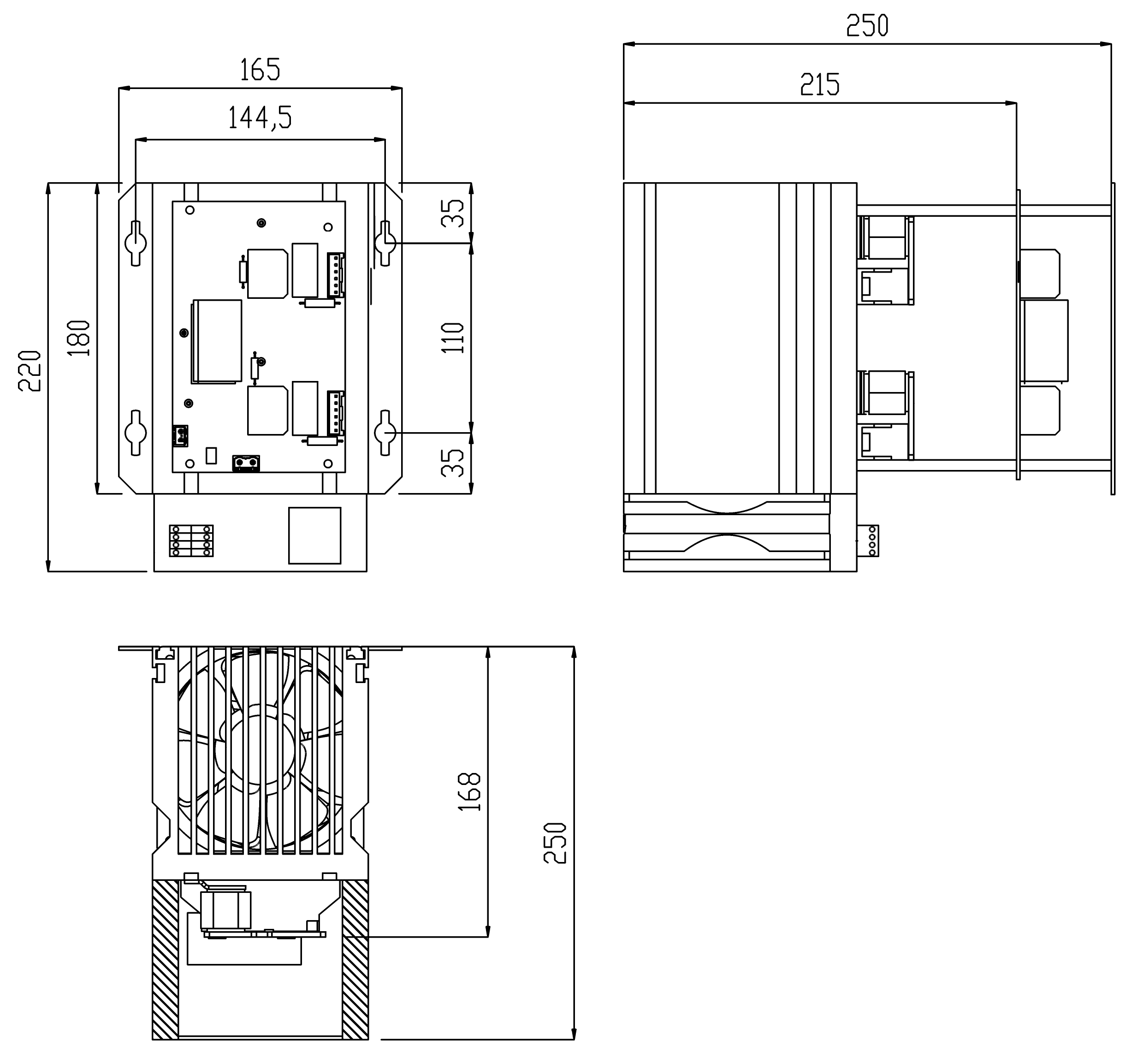

Depth 250mm	Height 220mm	Weight 4
Width 165mm	Element Fuses not included. External protection against overload and short circuits is required. 90°C thermostat

IP Rating

IP 00

Working Temperature

80°C max. heatsink temperature

Thermal Management

Fan: auxiliary voltage at 1x230 V~ (at terminals A1, A2)

Standards and Approvals

IEC 61439

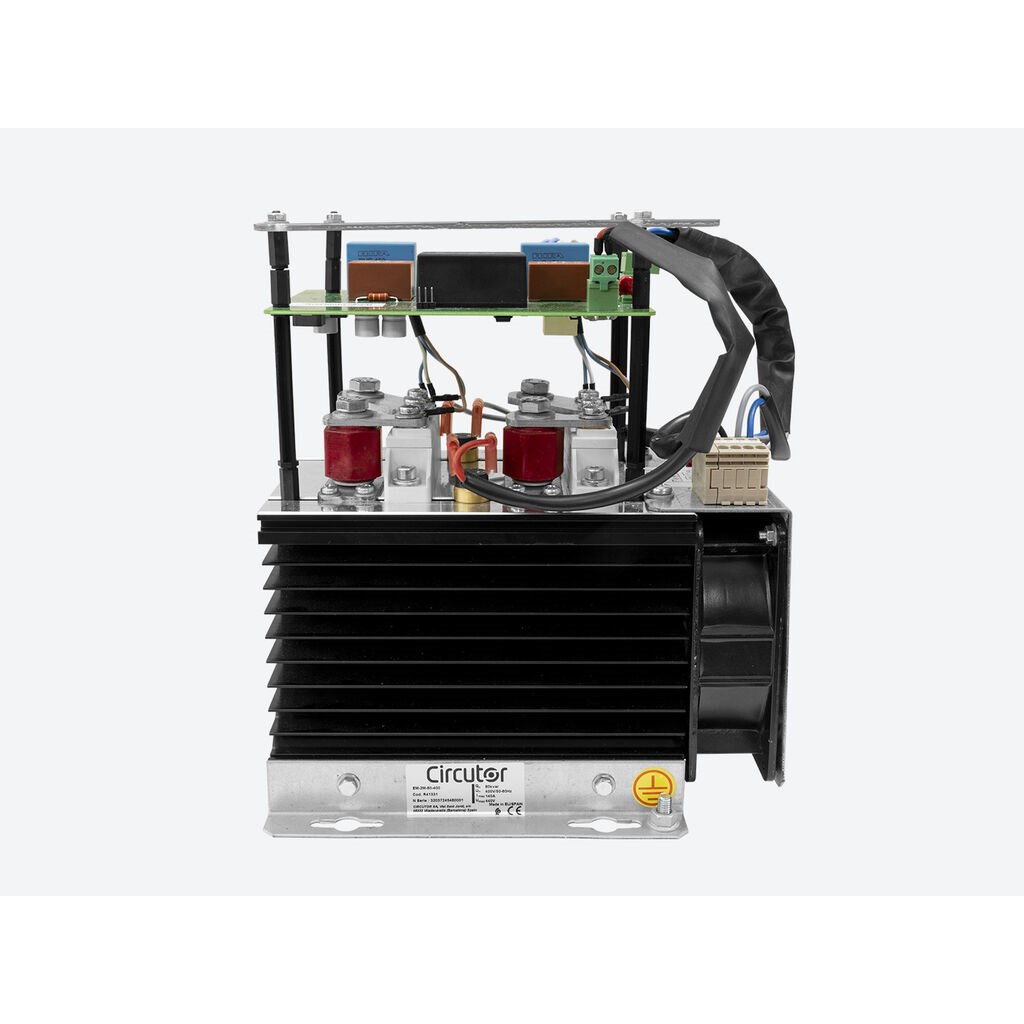

CIRCUTOR R4132M STATIC SWITCHING 2PH 80A 400V WALL EMB-M-2PH-80-400
