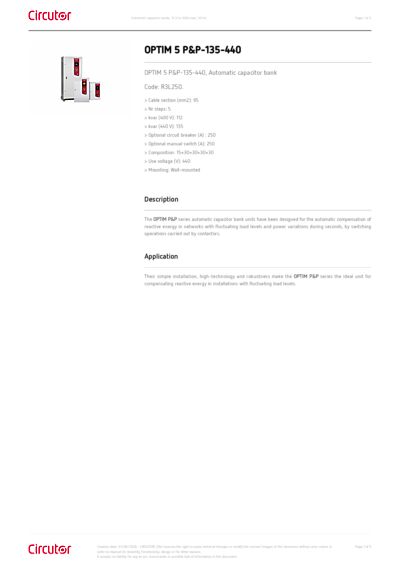

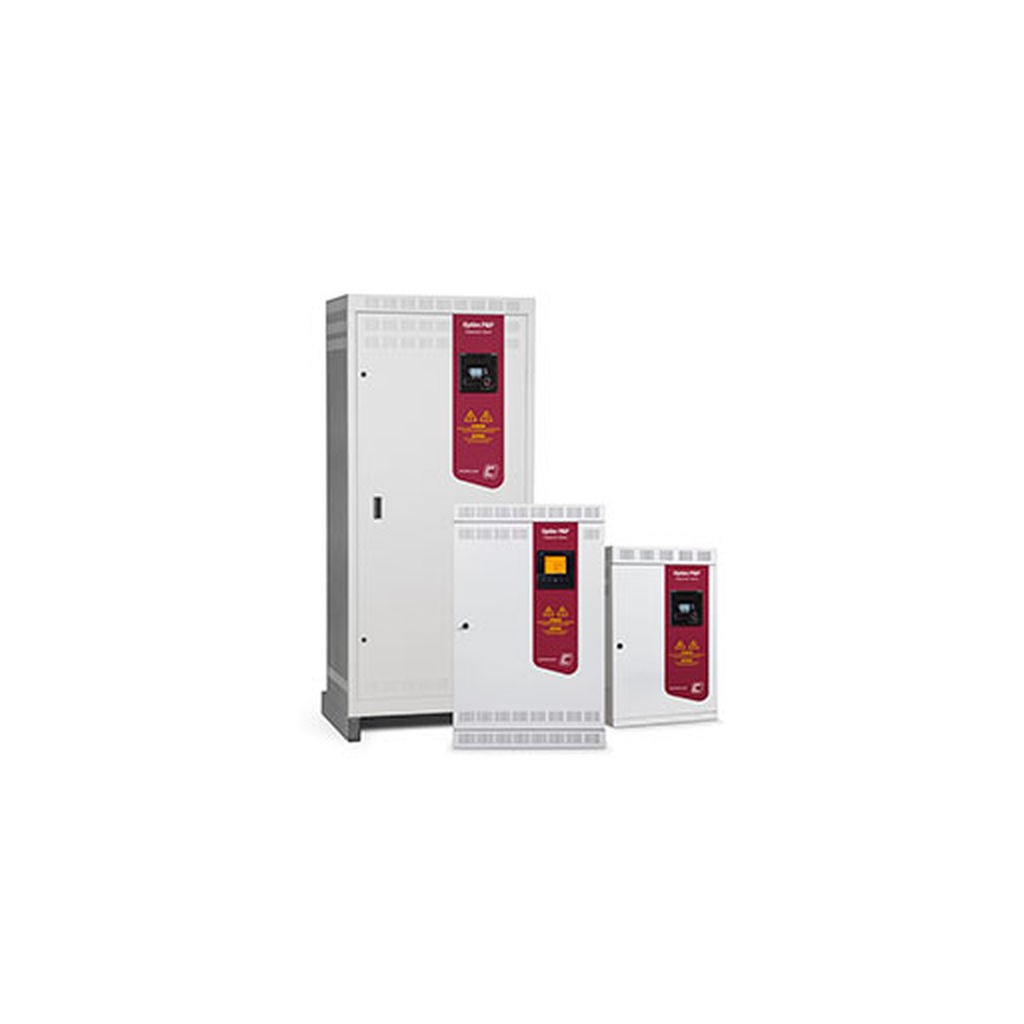

CIRCUTOR R3L250 OPTIM CAP BANK P&P 135 kVAr 440V 5 STEP OPTIM 5 P&P-135-440

Capacitor Bank

Circutor

OPTIM P&P

In/5 A

50Hz

440V (other voltages on request)

EC002758

Maximum 1000 m (for higher altitudes, forced ventilation must always be provided).

10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours

75 V / 3 min

-0.5

< 0,5W/kvar

440V

Contactors: 230V

Circuit breaker protection per step

In/5 A

1.3 In

Vertical / On wall

Sheet metal RAL 7035 Grey / RAL 3005 Garnet

Reactive energy regulator, Computer C Wi-Fi, with digital indication and 6 or 12 relay outputs according to type.

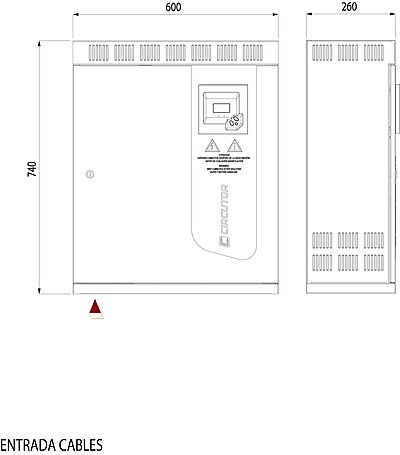

260mm

740mm

37

600mm

Step-Circuit breaker protection

0.8

IP 21

Tª class D: Daily average: 45°C, annual average: 35°C, maximum: 55°C, minimum: -50°C

Natural or forced according to options

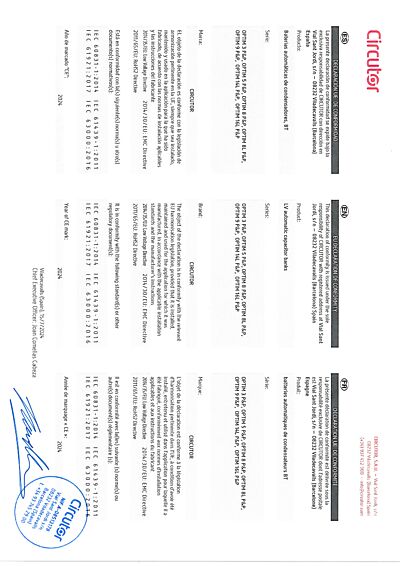

IEC 60831-1, IEC 61921, IEC 60439

Manual circuit breaker at capacitor bank header. Circuit breaker at capacitor bank header Circuit breaker + earth leakage protection at capacitor bank header. Forced ventilation unit + thermostat. Polycarbonate plate to avoid direct exposure. 400/230 V autotransformer (included in OPTIM 8, 9, 8L, 14L, and 16L) Regulator with built-in network analyser and three-phase Computer SMART III measurement. Other frequencies, consult.
