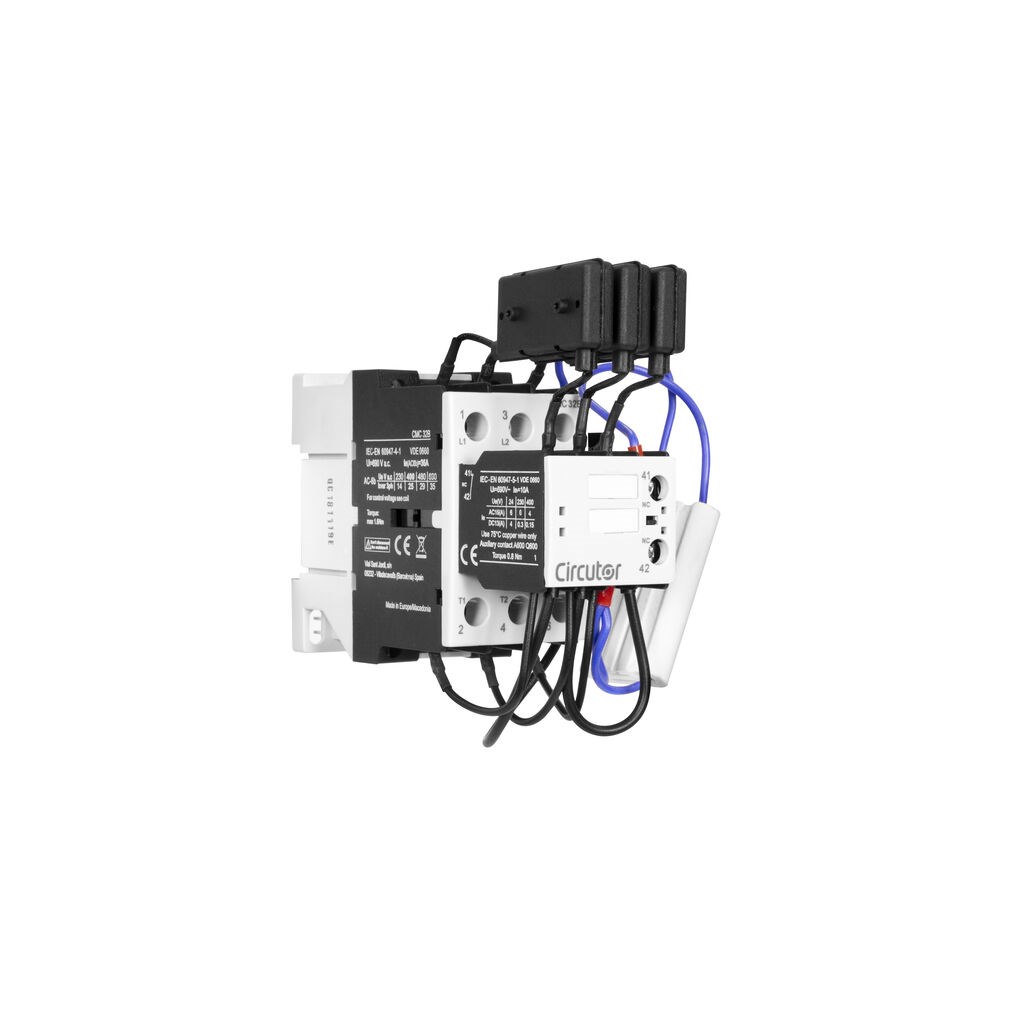

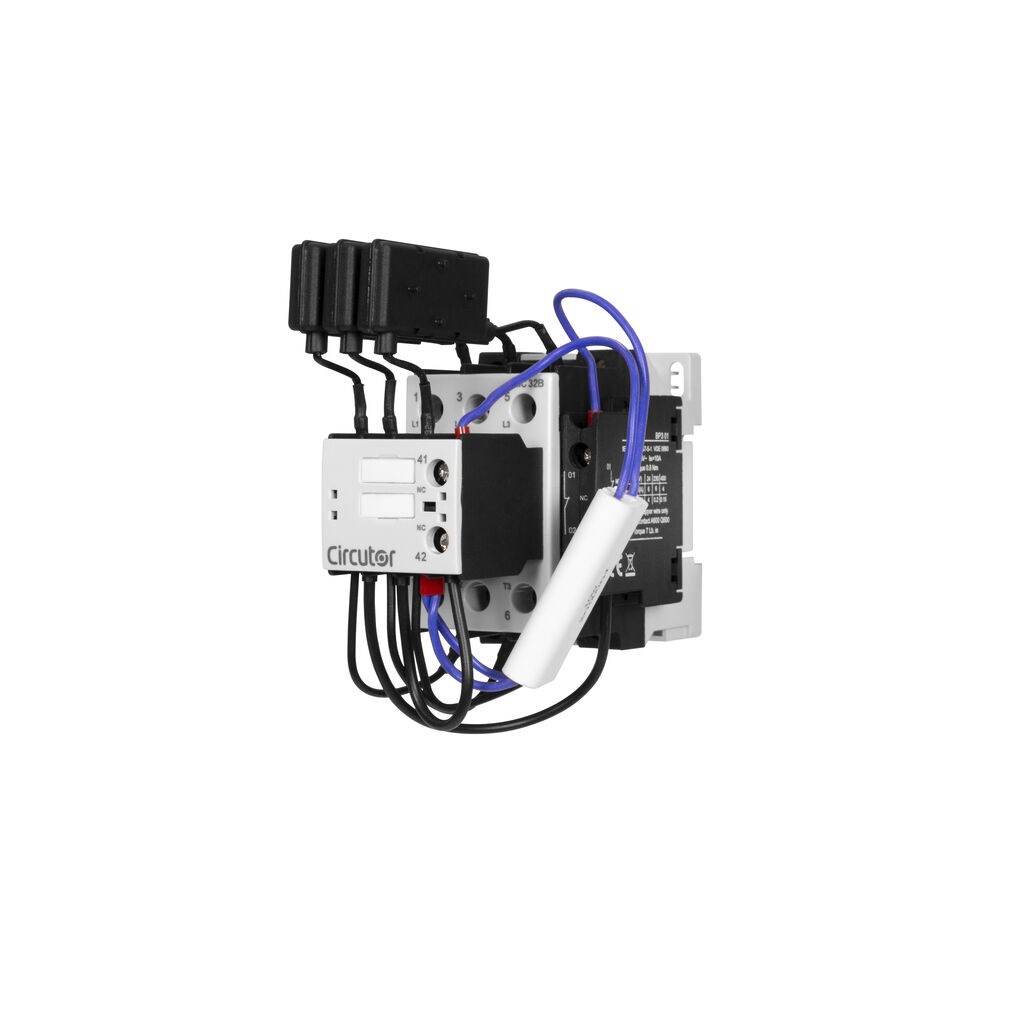

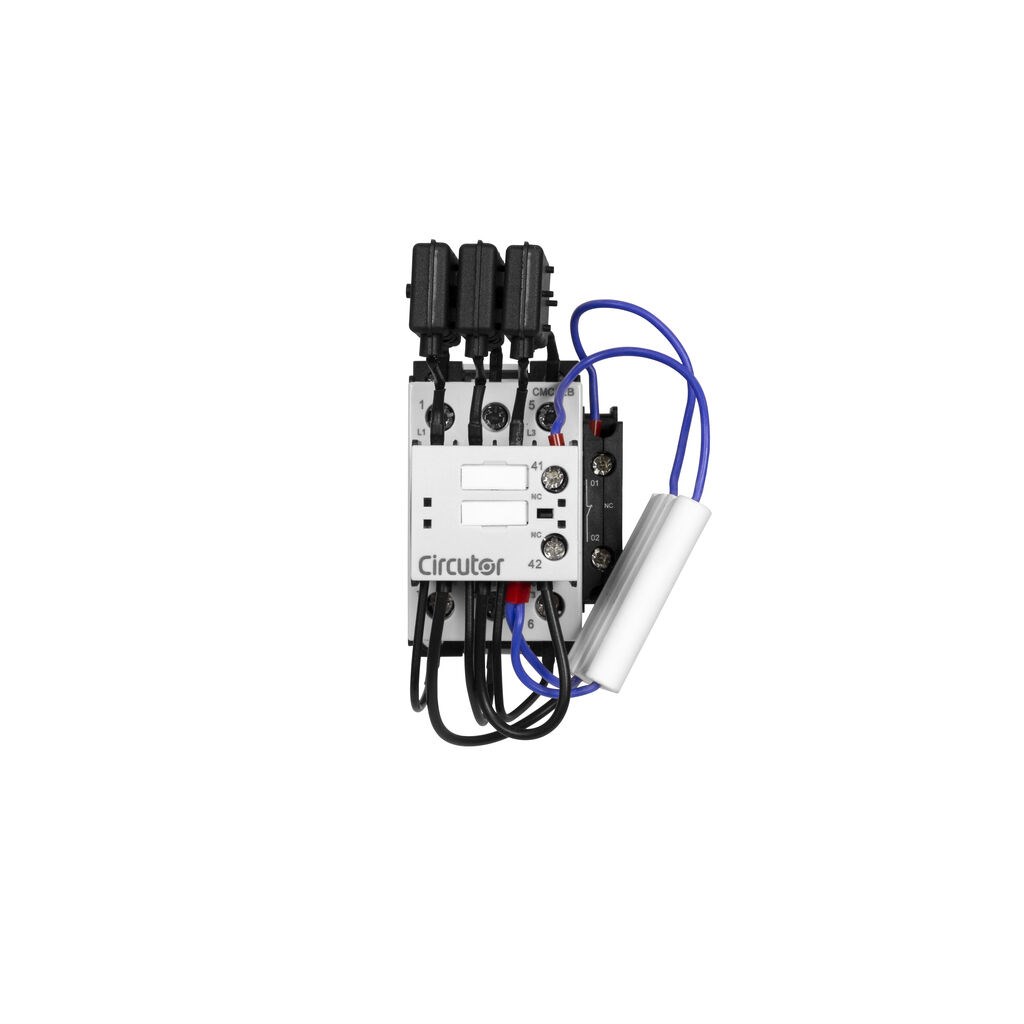

CIRCUTOR R281A8 CAPACITOR CONTACTOR 25kVAr @ 440V 50/60Hz CMC 32 B

Product Code: R281A8

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Capacitor Contactor
Brand
Circutor
Series
CMC B

Electrical

Nominal Voltage (AC Primary)
220V to 690V
Rated Insulation Voltage (Ui)
690V to 1000V
Rated Frequency
50Hz to 60Hz
Electrical Life
200000 cycles
ETIM 9.0 Class
EC001079
Electrical Safety, Maximum Height (M)
2000
Nominal Operating Current
37A (400V)
Cadence of Maneuver
100/h
Coil Tension / Tolerance
230 V / 0.85 … 1.1 Un

Dimensions & Physical Data

Depth
121.4mm
Height
80mm
Weight
0.473
Width
54.6mm

Environmental

Relative Humidity (Without condensation)
5% to 95%
IP Rating
IP 00
Working Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-1, VDE 0660
Certifications / Approvals
VDE

Documents

IPD Product Catalogue V17
CE Certification

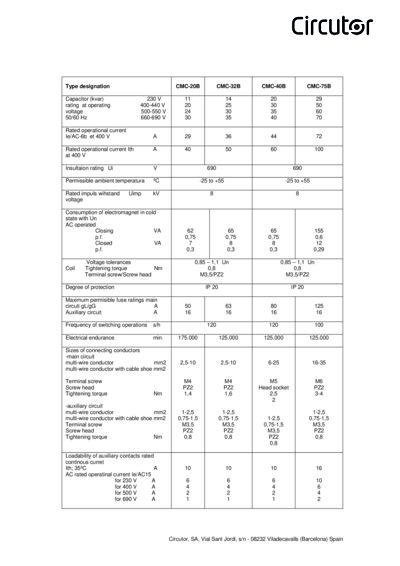

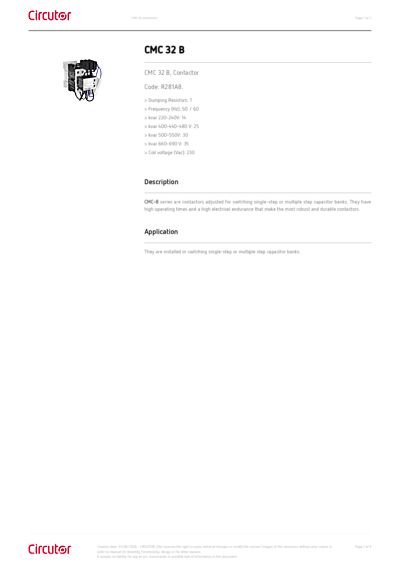

Circutor Datasheet
Circutor User Manual
