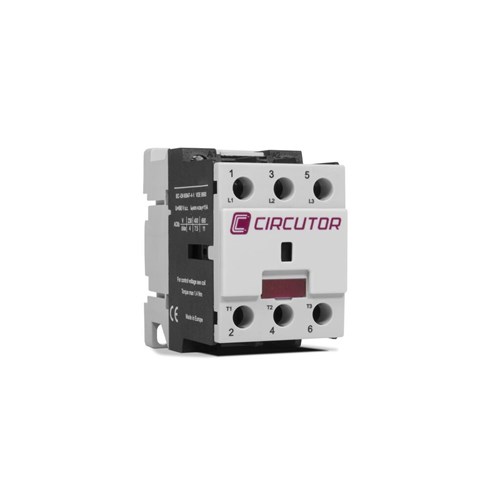

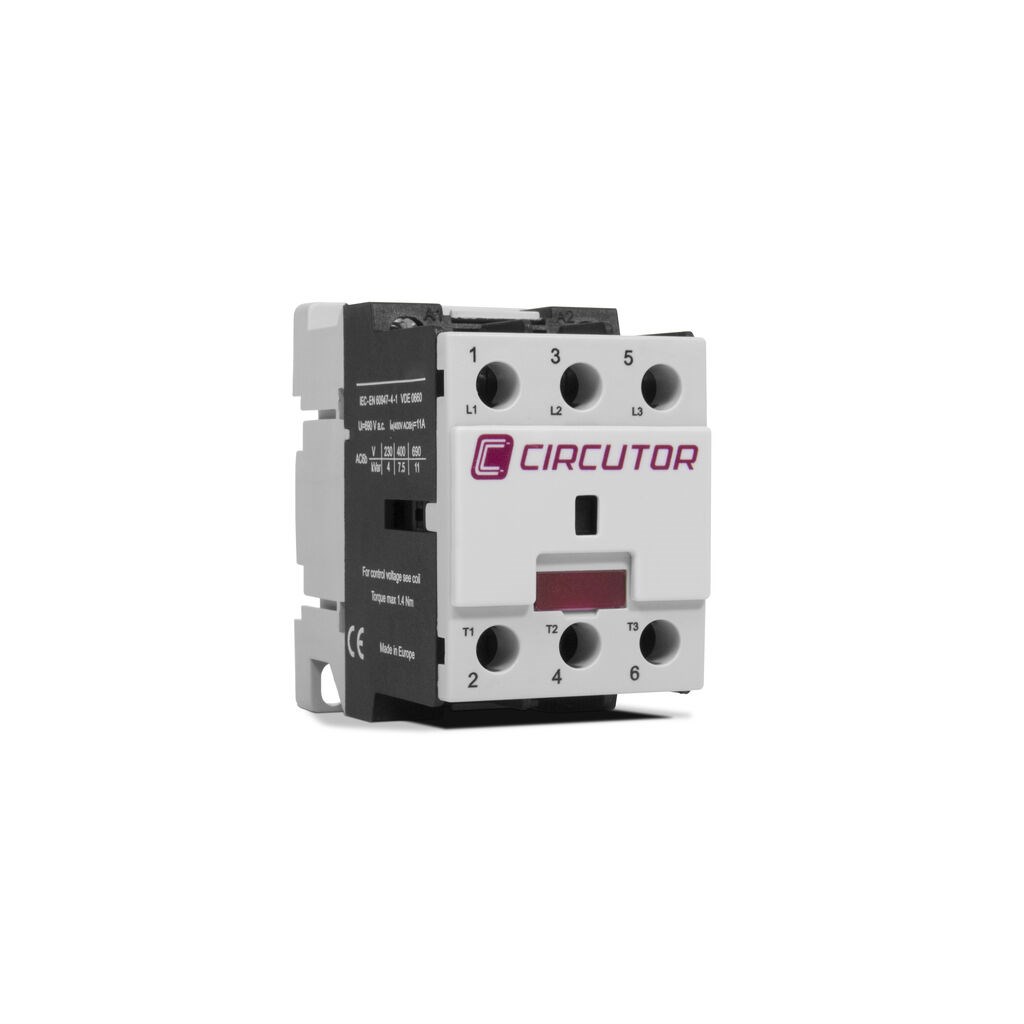

CIRCUTOR R281A5 CAPACITOR CONTACTOR 7.5kVAr @ 440V 50/60Hz CMC 7.5 B

Product Code: R281A5

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Capacitor Contactor
Brand
Circutor
Series
CMC B

Electrical

Nominal Voltage (AC Primary)
220V to 690V
Rated Insulation Voltage (Ui)
690V to 1000V
Rated Frequency
50Hz to 60Hz
Electrical Life
200000 cycles
ETIM 9.0 Class
EC001079
Electrical Safety, Maximum Height (M)
2000
Nominal Operating Current
11A (400V)
Cadence of Maneuver
240/h
Coil Tension / Tolerance
230 V / 0.85 … 1.1 Un

Dimensions & Physical Data

Depth
71mm
Height
72.2mm
Weight
0.28
Width
44.8mm

Environmental

Relative Humidity (Without condensation)
5% to 95%
IP Rating
IP 00
Working Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-4-1, VDE 0660
Certifications / Approvals
VDE

Documents

IPD Product Catalogue V17
CE Certification

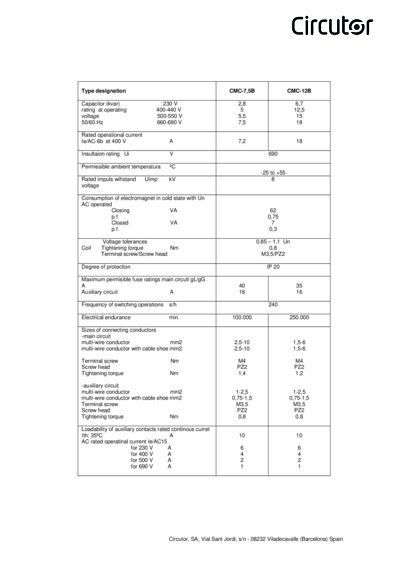

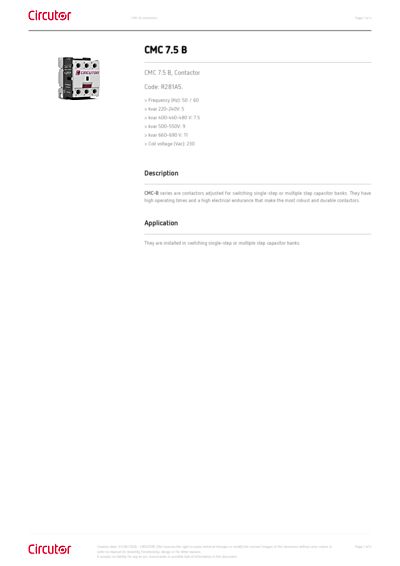

Circutor Datasheet

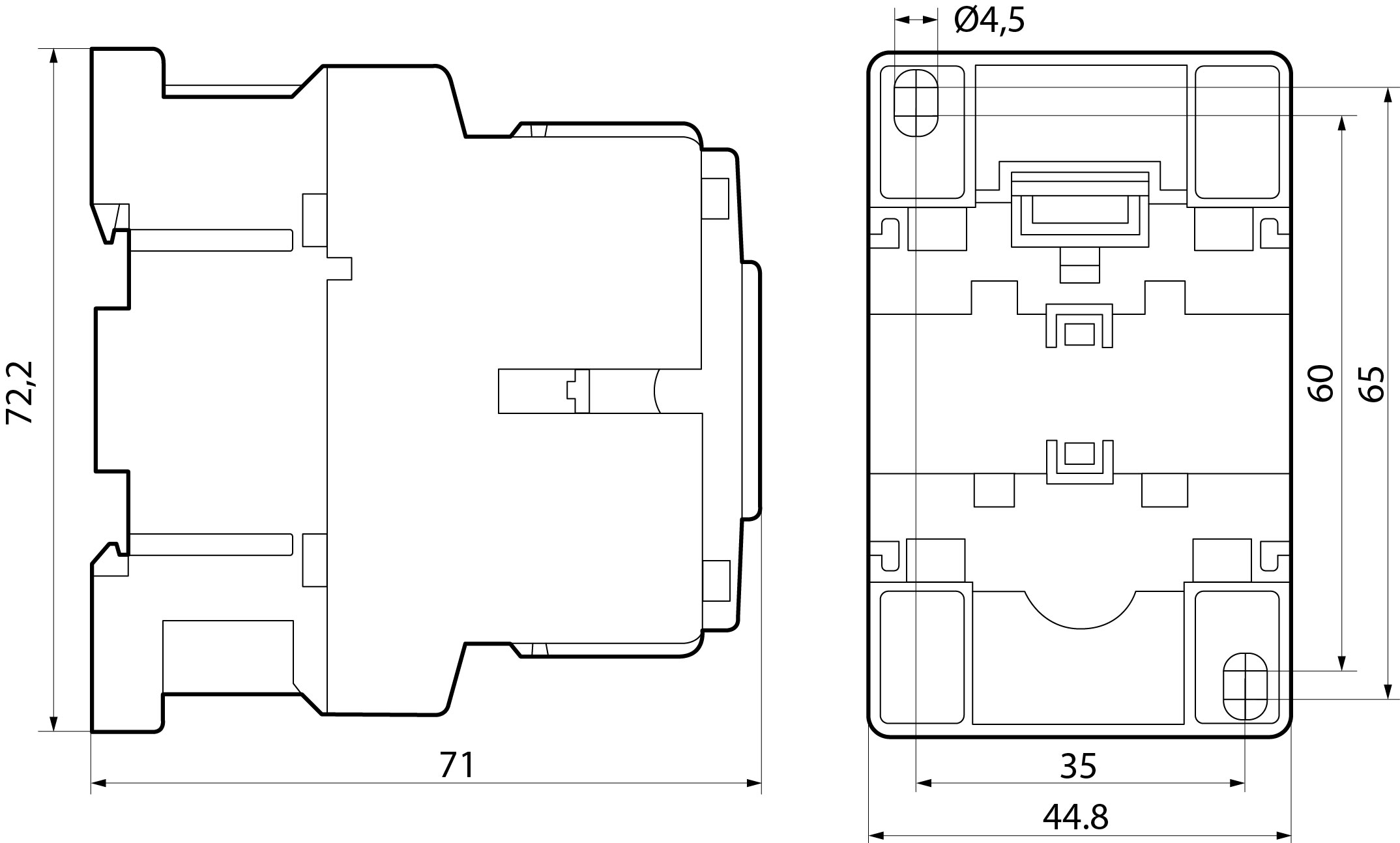

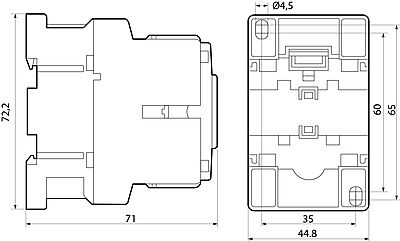

Circutor Dimensions
Circutor User Manual
