Specifications

Product Type

Capacitor Contactor

Brand

Circutor

Series

CMC B

Nominal Voltage (AC Primary) 220V to 690V	Rated Insulation Voltage (Ui) 690V to 1000V	Rated Frequency 50Hz to 60Hz
Electrical Life 200000 cycles	ETIM 9.0 Class EC001079	Electrical Safety, Maximum Height (M) 2000
Nominal Operating Current 29A (400V)	Cadence of Maneuver 120/h	Coil Tension / Tolerance 230 V / 0.85 … 1.1 Un

Depth 107.9mm	Height 72.2mm	Weight 0.38
Width 54.8mm

Relative Humidity (Without condensation)

5% to 95%

IP Rating

IP 00

Working Temperature

-25°C to 55°C

Standards and Approvals

IEC 60947-4-1, VDE 0660

Certifications / Approvals

VDE

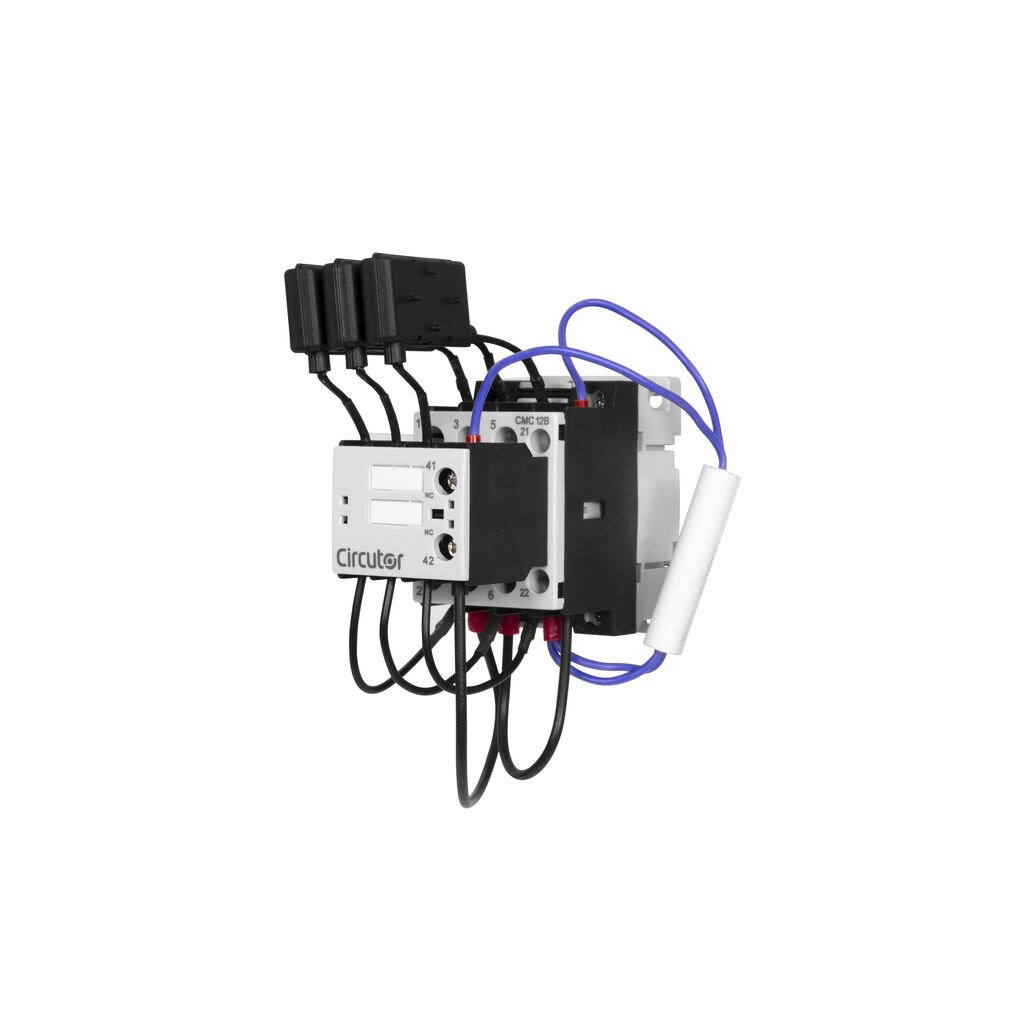

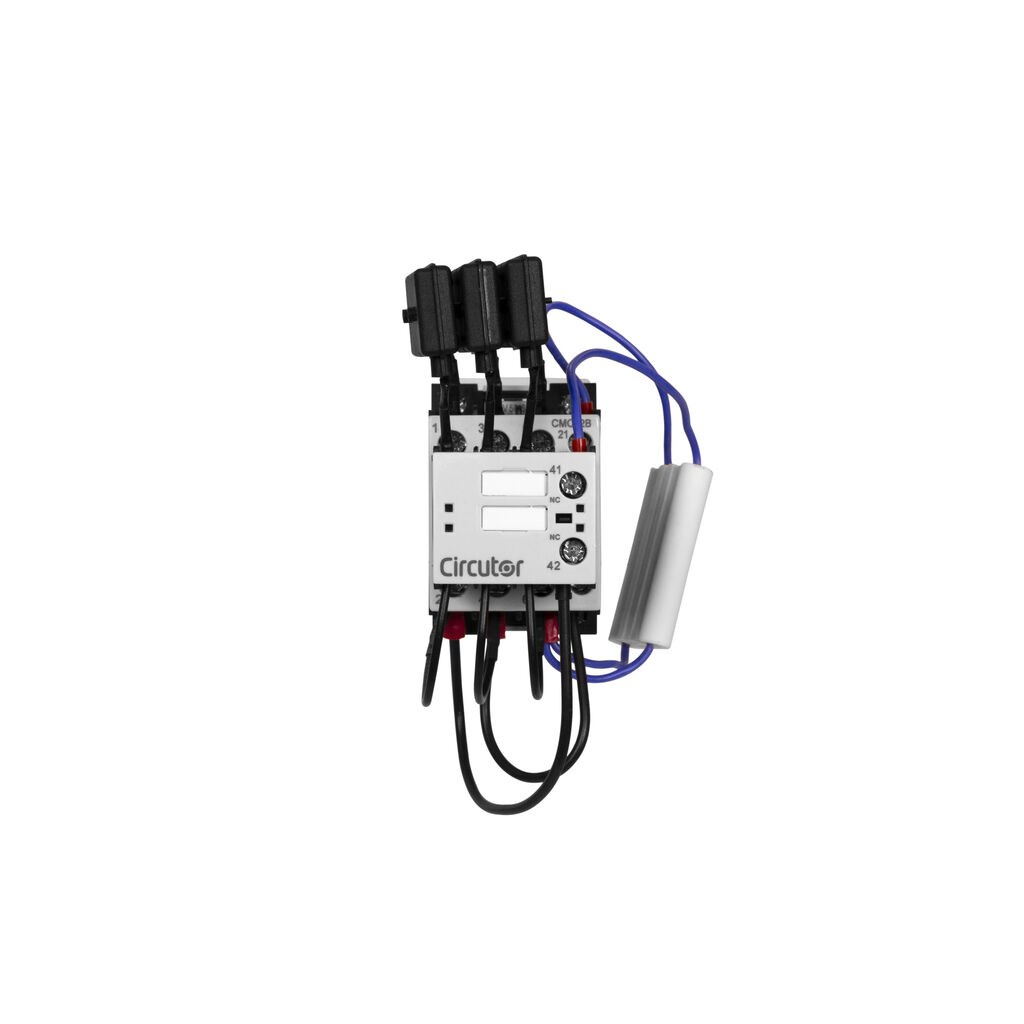

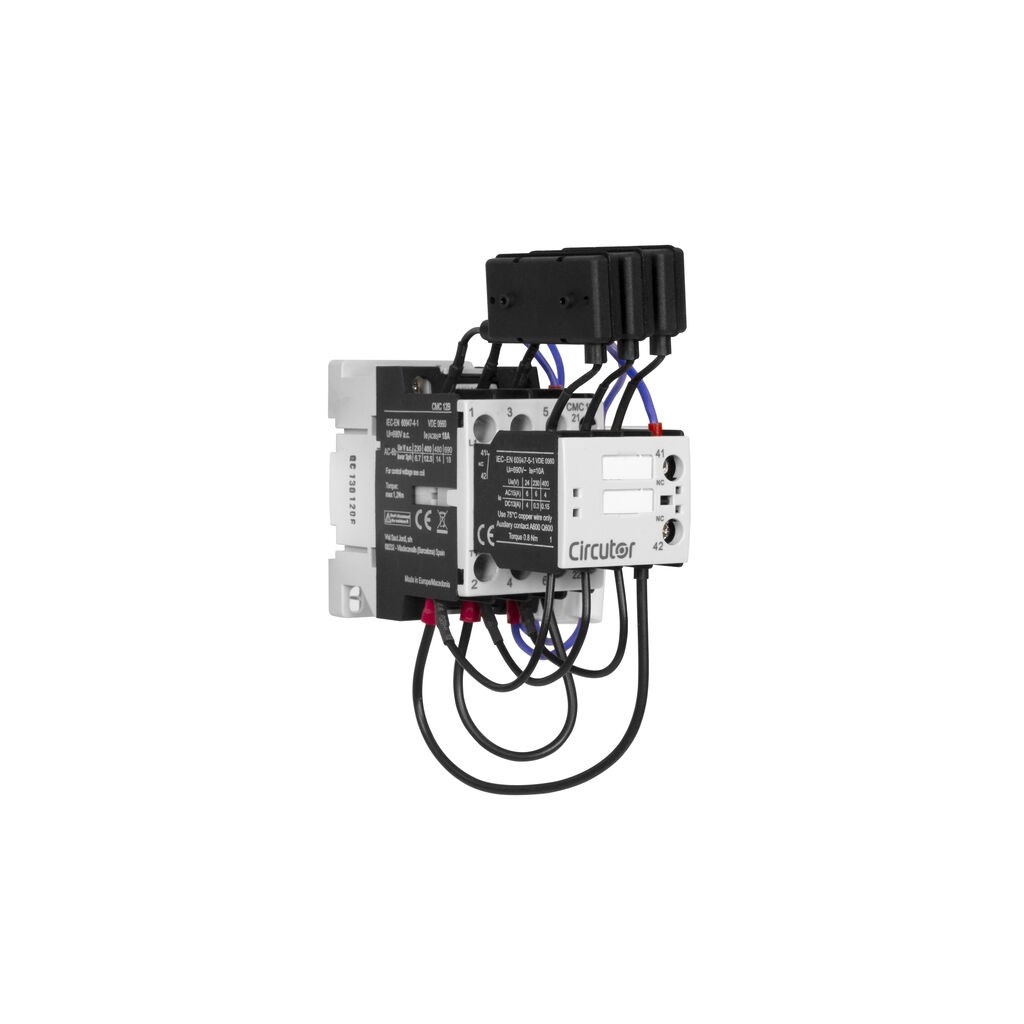

CIRCUTOR R281A4 CAPACITOR CONTACTOR 20kVAr @ 440V 50/60Hz CMC 20 B
