Specifications

Product Type

Power Capacitor

Brand

Circutor

Series

CSB

Rated Insulation Voltage (Ui) 3 / 15kV	Rated Frequency 50Hz to 60Hz	Voltage 400V
ETIM 9.0 Class EC002758	Electrical Safety, Maximum Height (M) 2000	Surge 10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance 75 V / 3 min	Tolerance -5 … +15 %	Losses (W) Dielectric: < 0,2W / kvar Total: < 0,4W / kvar
Permanent Overload (Electrical) 1.3 In	Circuit Breaker Type Dielectric regeneration Internal fuse Overpressure system Vermiculite

Torque Setting

15N·m

Fastening/Setting

Vertical / Horizontal. Minimum distance between condensers 4 cm

Envelope

Treated and painted steel in RAL 3005 colour

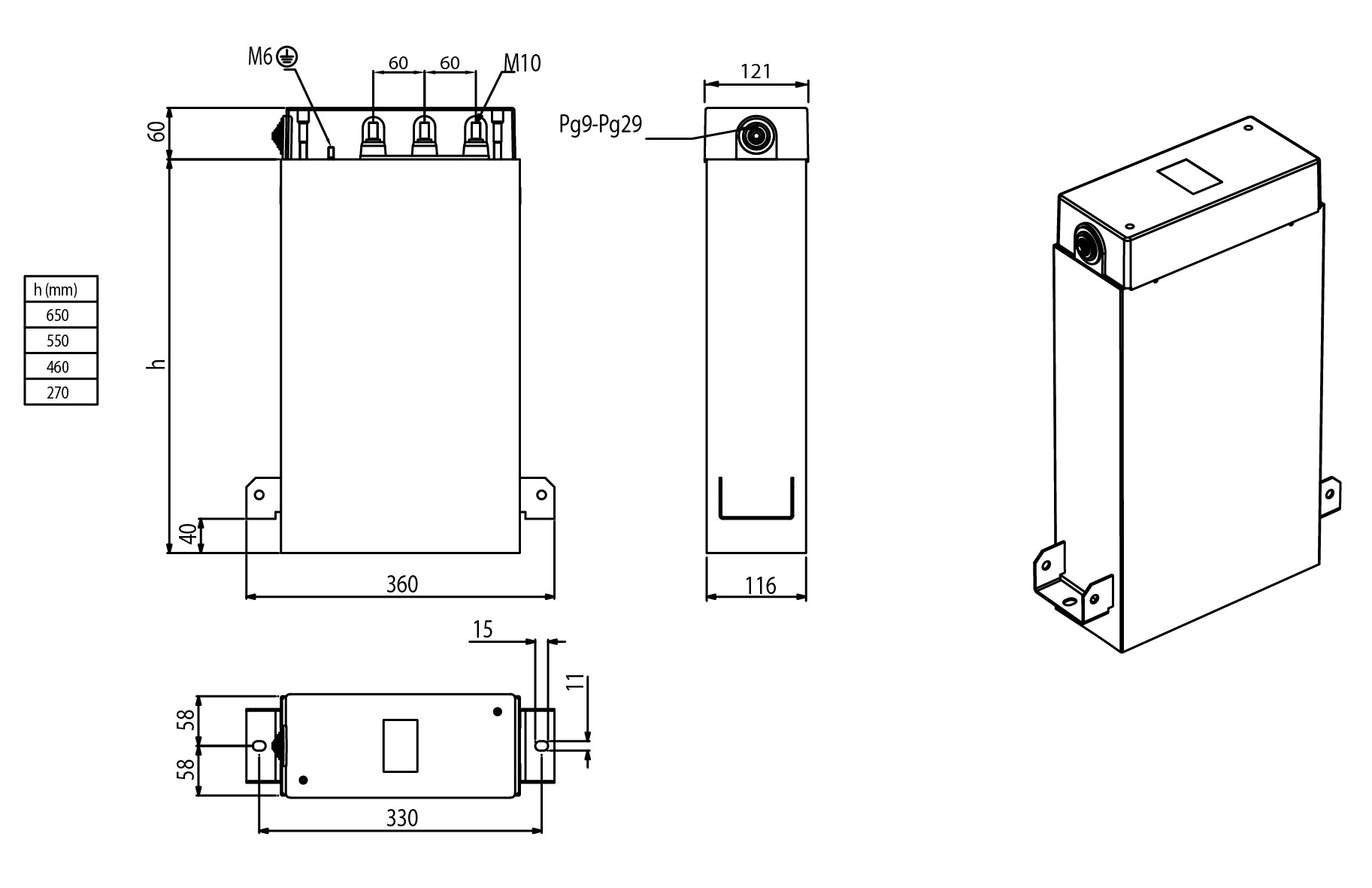

Depth 120mm	Height 330mm	Weight 5.76
Width 360mm	Cable Gauge at Current Terminals Power M10

Relative Humidity (Without condensation) 0.8	IP Rating IP 42 with terminal cover	Working Temperature Tª class D: Daily average: 45°C, annual average: 35°C, maximum: 55°C, minimum: -25°C
Thermal Management Natural or forced depending on the cabinet

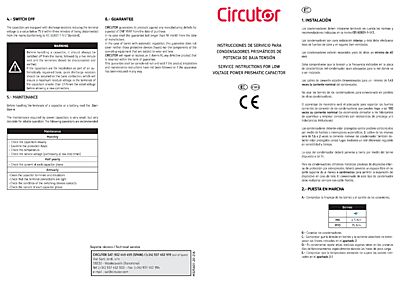

Standards and Approvals

IEC 60831-1, UNE-EN 60831-1

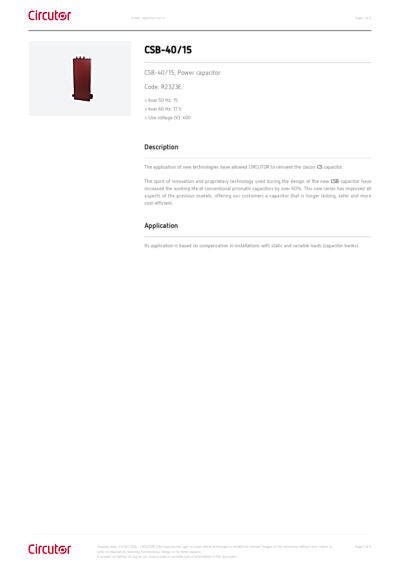

CIRCUTOR R2323E POWER CAPACITOR 400V 15kVAr @ 50Hz CSB-40/15
