Specifications

Product Type

Power Capacitor

Brand

Circutor

Series

CSB

Rated Insulation Voltage (Ui) 3 / 15kV	Rated Frequency 50Hz to 60Hz	Voltage 230V
ETIM 9.0 Class EC002758	Electrical Safety, Maximum Height (M) 2000	Surge 10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance 75 V / 3 min	Tolerance -5 … +15 %	Losses (W) Dielectric: < 0,2W / kvar Total: < 0,4W / kvar
Permanent Overload (Electrical) 1.3 In	Circuit Breaker Type Dielectric regeneration Internal fuse Overpressure system Vermiculite

Torque Setting

15N·m

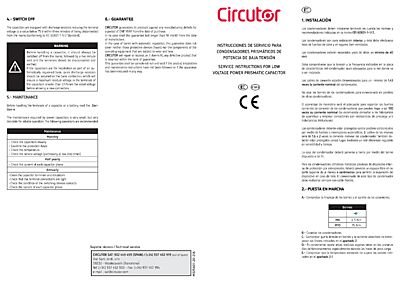

Fastening/Setting

Vertical / Horizontal. Minimum distance between condensers 4 cm

Envelope

Treated and painted steel in RAL 3005 colour

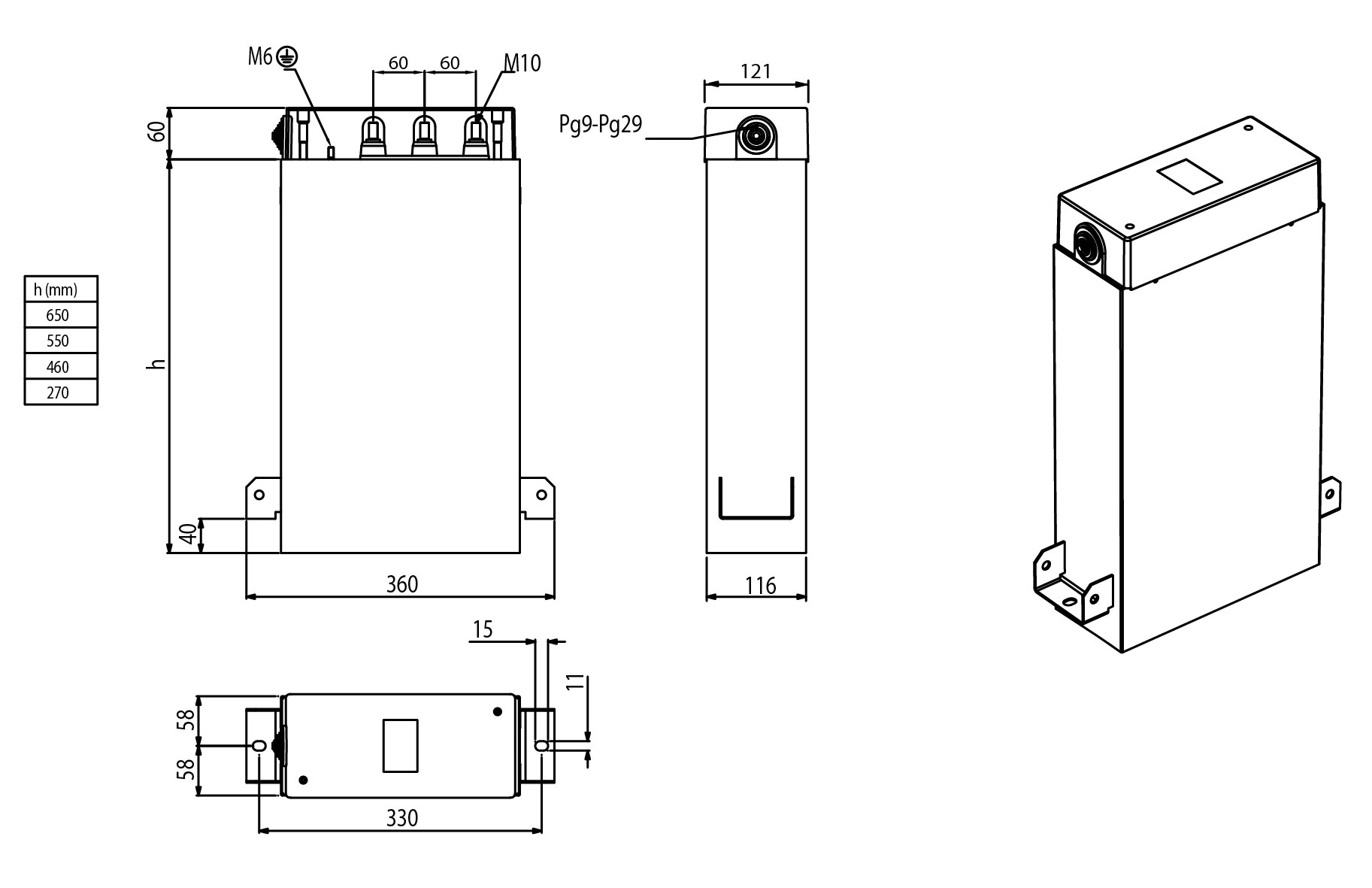

Depth 120mm	Height 330mm	Weight 8
Width 360mm	Cable Gauge at Current Terminals Power M10

Relative Humidity (Without condensation) 0.8	IP Rating IP 42 with terminal cover	Working Temperature Tª class D: Daily average: 45°C, annual average: 35°C, maximum: 55°C, minimum: -25°C
Thermal Management Natural or forced depending on the cabinet

Standards and Approvals

IEC 60831-1, UNE-EN 60831-1

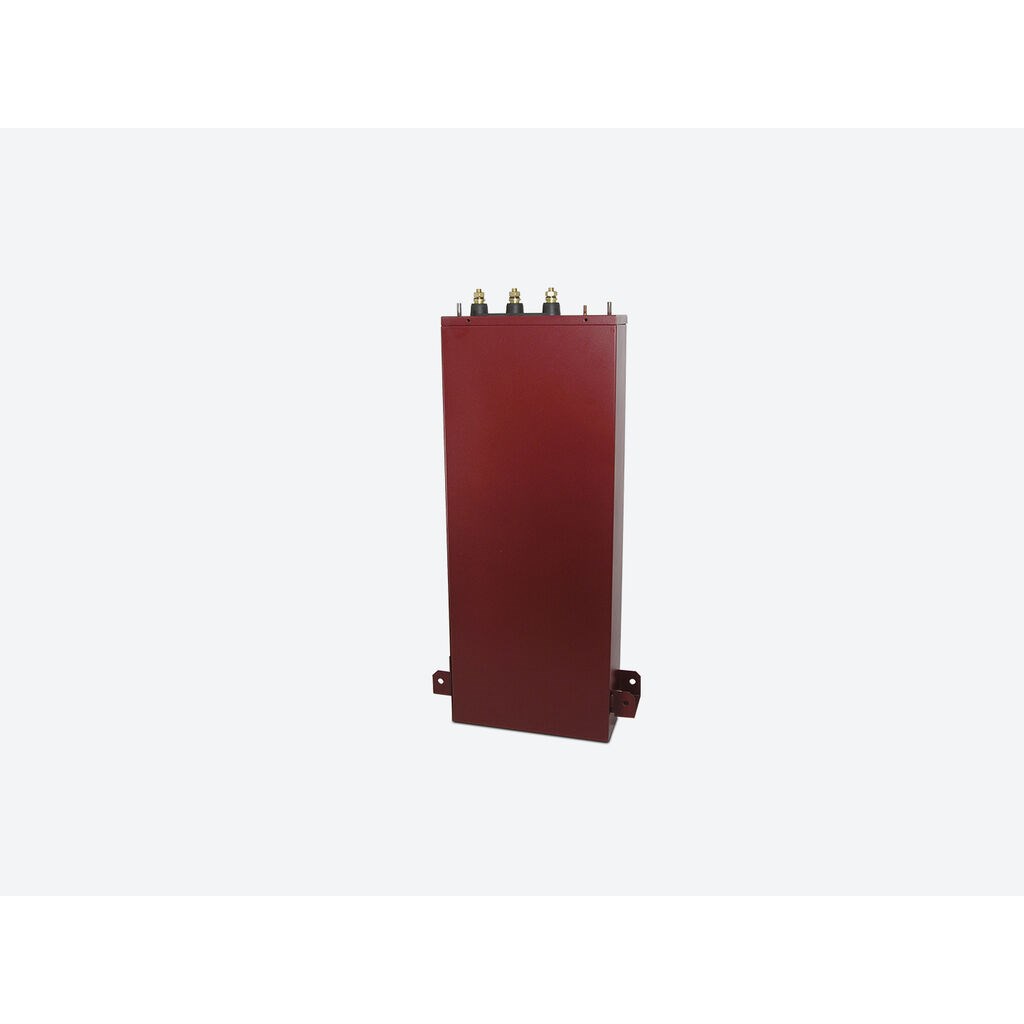

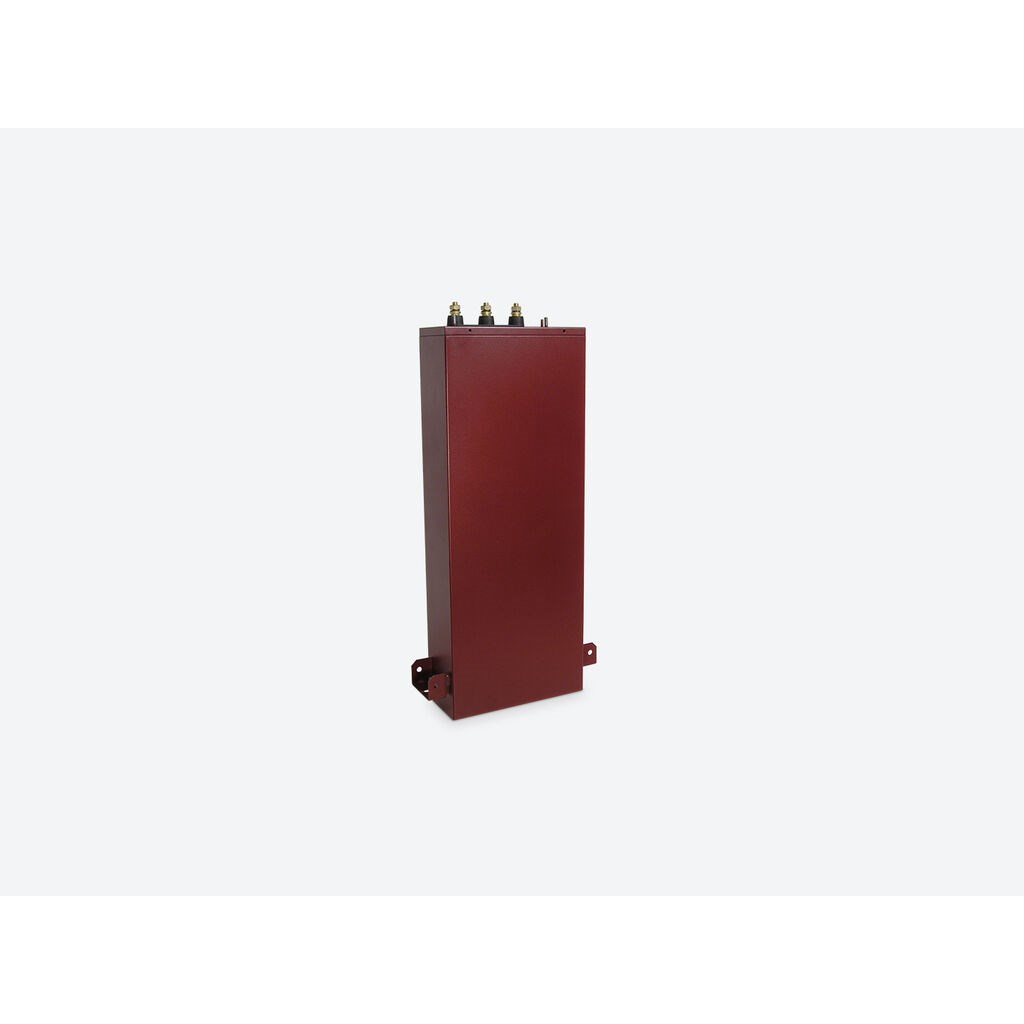

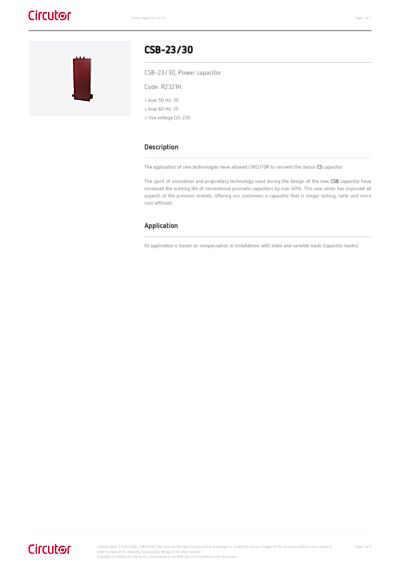

CIRCUTOR R2321H POWER CAPACITOR 230V 30kVAr @ 50Hz CSB-23/30
