Specifications

Product Type

Detuned Filter Reactor

Brand

Circutor

Series

REZ-RBEZ

Rated Insulation Voltage (Ui) 4000V	Rated Frequency 50Hz (On request: 60Hz)	Voltage 400 V,on request: up to 1000 V
ETIM 9.0 Class EC002565	Thermal Class class F (+155 ºC) On request: class H (+180 ºC)	Losses (W) 70W
Max. Transient Current 2 In (1 min)	Inductance (mH) 7.5	Tolerance L ± 5 %
Linearity (5% L) 1.8 In	Permanent Overload (Electrical) 1.17 In	Overvoltage Factor (Per Unit %) 7 % (189 Hz)
Nominal Operating Current 13A	Circuit Breaker Type 90°C NC thermostat

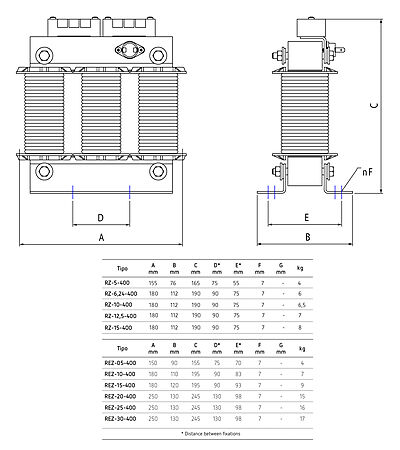

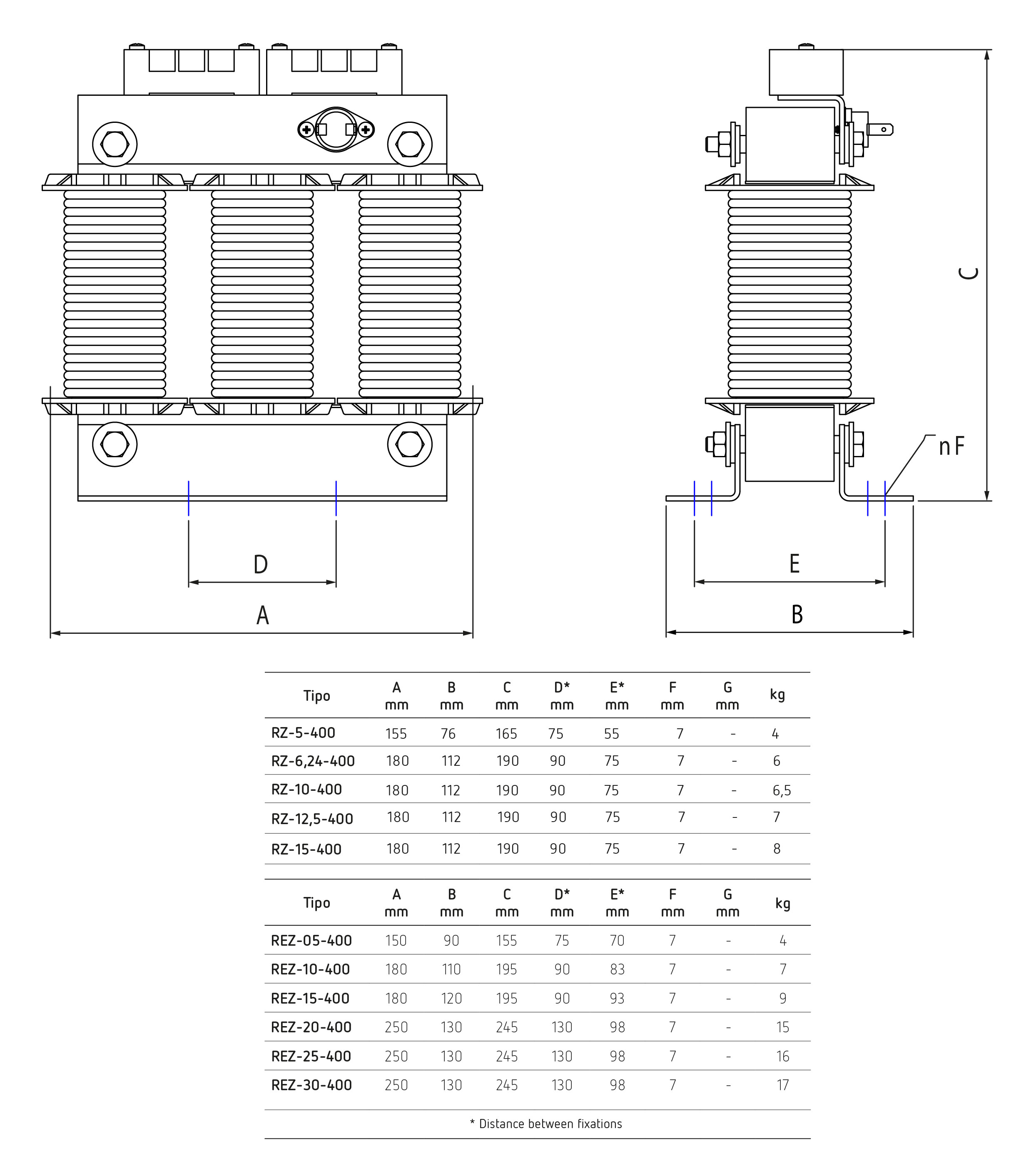

Envelope

Conductor type: copper wire

Depth 180mm	Height 195mm	Weight 9
Width 120mm	Installation Inside

IP Rating

IP 00

Ambient Temperature

-10°C to 45°C

Standards and Approvals

UNE-EN 60289, IEC 60076

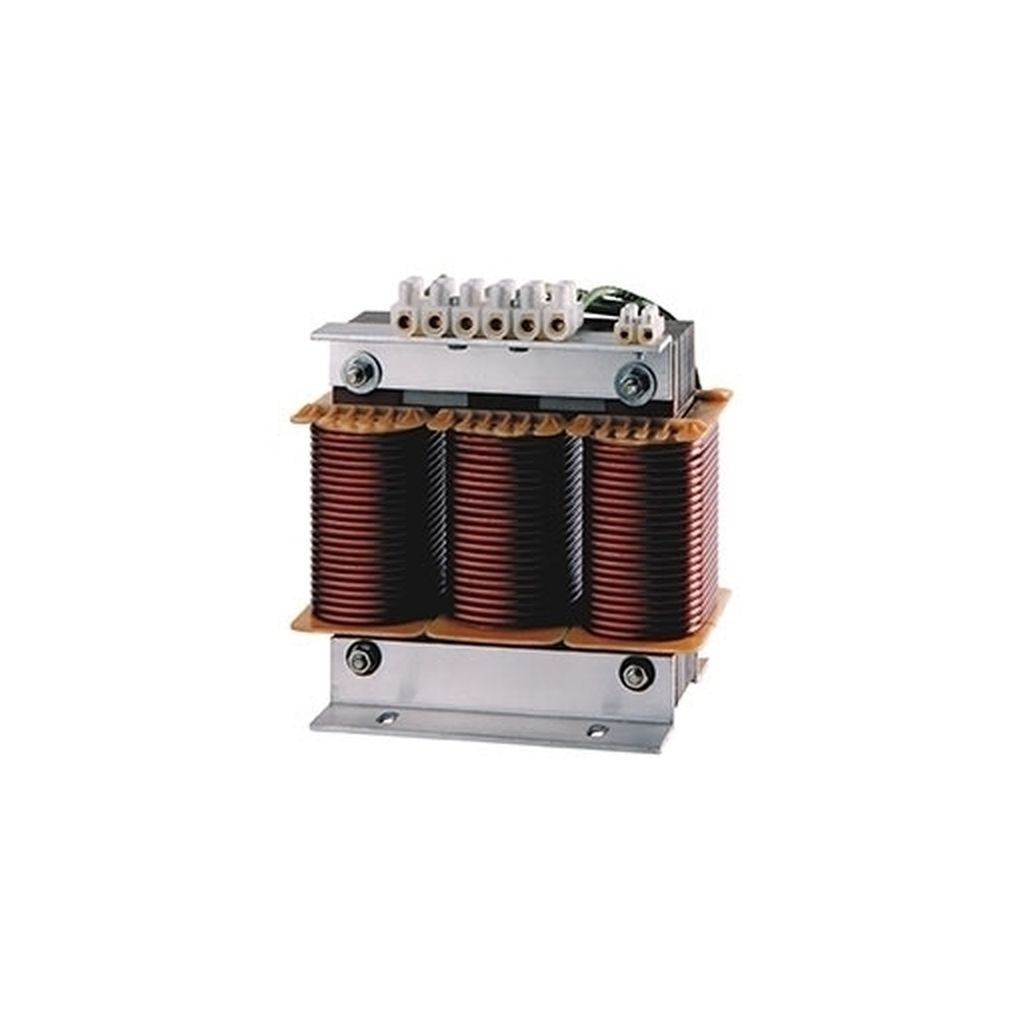

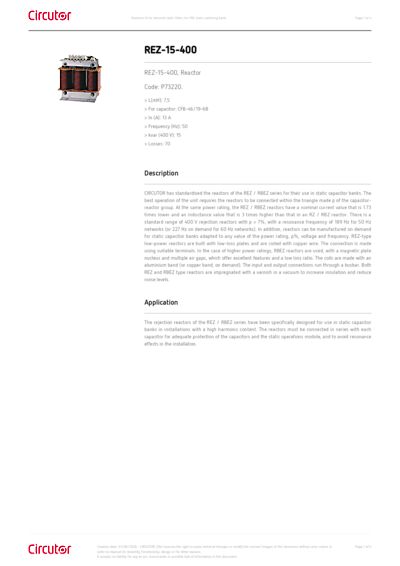

CIRCUTOR P73220 REACTOR 15kVAr 400V 7% DETUNED STAT FILTER REACTOR REZ-15-400
