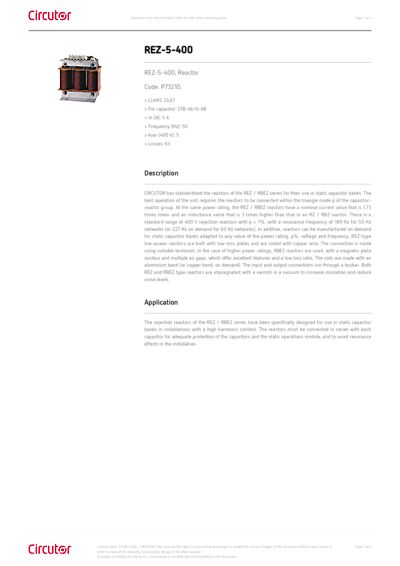

Specifications

Product Type

Detuned Filter Reactor

Brand

Circutor

Series

REZ-RBEZ

Rated Insulation Voltage (Ui) 4 kV	Rated Frequency 50 Hz (On request: 60 Hz)	Voltage 400 V,on request: up to 1000 V
ETIM 9.0 Class EC002565	Thermal Class class F (+155 ºC) On request: class H (+180 ºC)	Losses (W) 63 W
Max. Transient Current 2 In (1 min)	Inductance (mH) 23.67	Tolerance L ± 5 %
Linearity (5% L) 1.8 In	Permanent Overload (Electrical) 1.17 In	Overvoltage Factor (Per Unit %) 7 % (189 Hz)
Nominal Operating Current 0.2083333333	Circuit Breaker Type 90°C NC thermostat

Envelope

Conductor type: copper wire

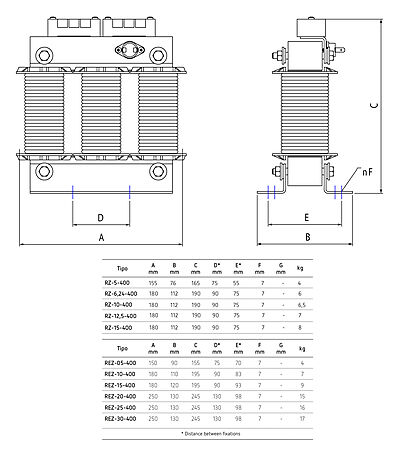

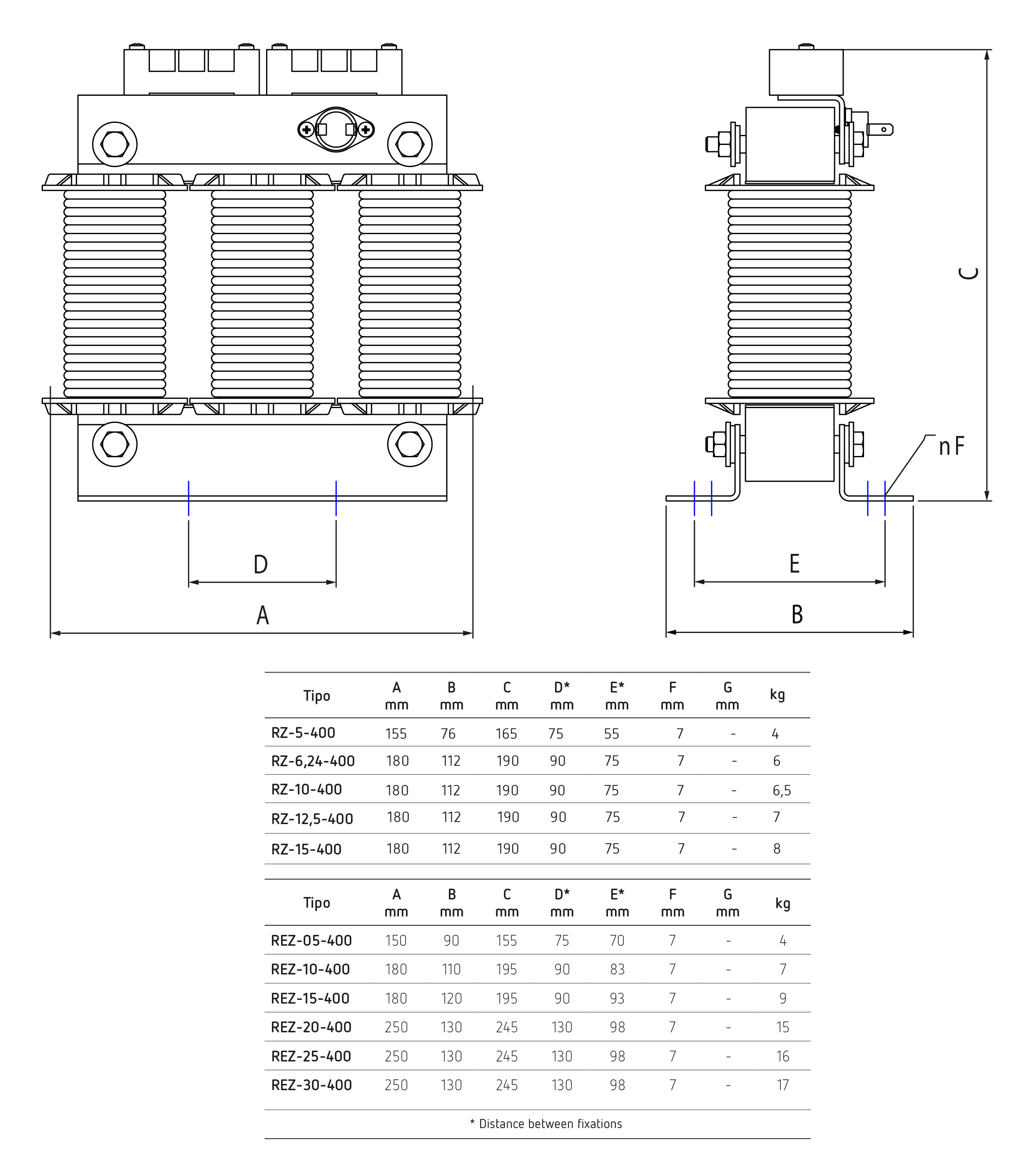

Depth 150 mm	Height 155 mm	Weight 4
Width 90 mm	Installation Inside

IP Rating

IP 00

Ambient Temperature

-10 … +45 ºC

Standards and Approvals

UNE-EN 60289, IEC 60076

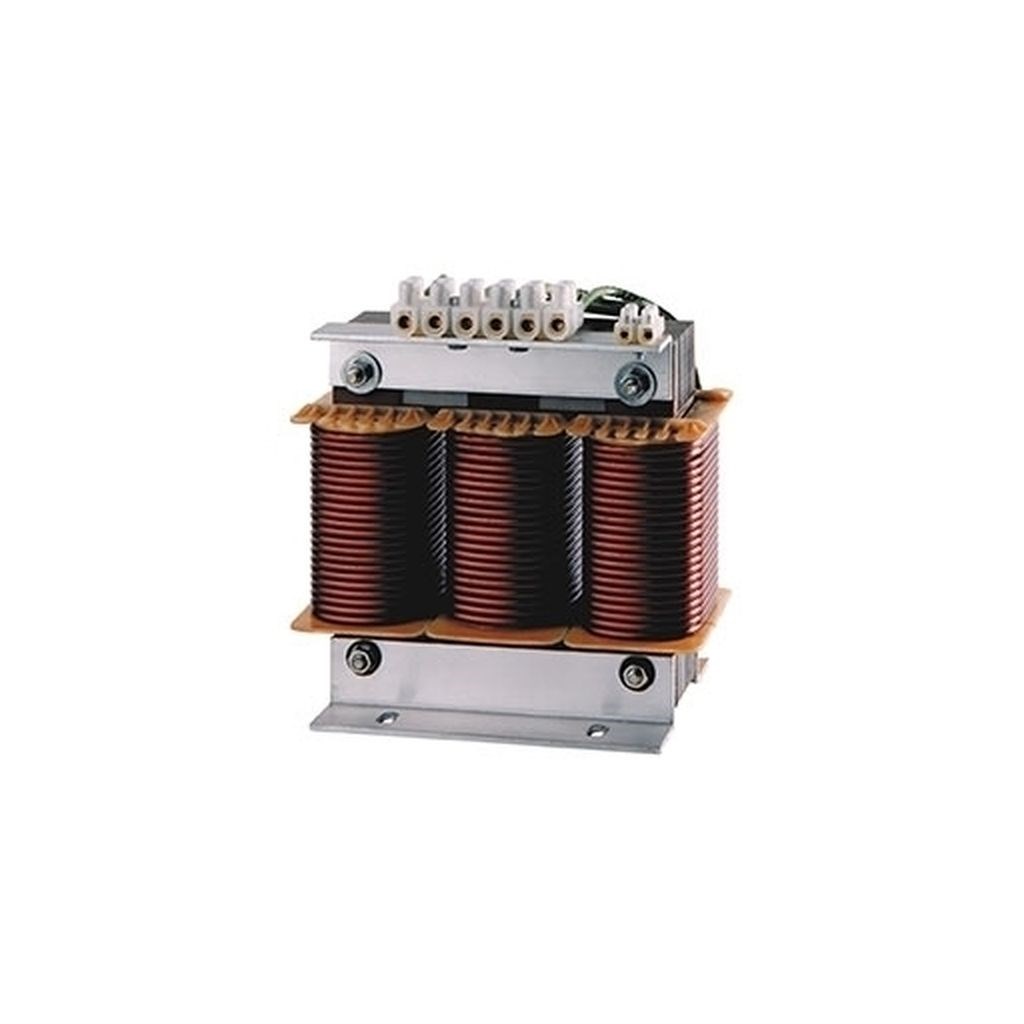

CIRCUTOR P73210 REACTOR 5kVAr 400V 7% DETUNED STAT FILTER REACTOR REZ-5-400
