Specifications

Product Type

Detuned Filter Reactor

Brand

Circutor

Series

RZ-RBZ

Rated Insulation Voltage (Ui) 3000V	Rated Frequency 50Hz	Voltage 400 V,on request: up to 1000 V
ETIM 9.0 Class EC002565	Thermal Class class F (+155 ºC) On request: class H (+180 ºC)	Losses (W) 241W
Max. Transient Current 2 In (1 min)	Inductance (mH) 0.47	Tolerance L ± 5 %
Linearity (5% L) 1.75 In	Permanent Overload (Electrical) 1.17 In	Overvoltage Factor (Per Unit %) 7 % (189 Hz)
Nominal Operating Current 115A	Circuit Breaker Type 9125°C NC thermostat

Envelope

Conductor type: Aluminium strip / copper cable

Depth 155mm	Height 255mm	Weight 33
Width 305mm	Installation Inside

IP Rating

IP 00

Ambient Temperature

-10°C to 45°C

Standards and Approvals

UNE-EN 60289, IEC 60076

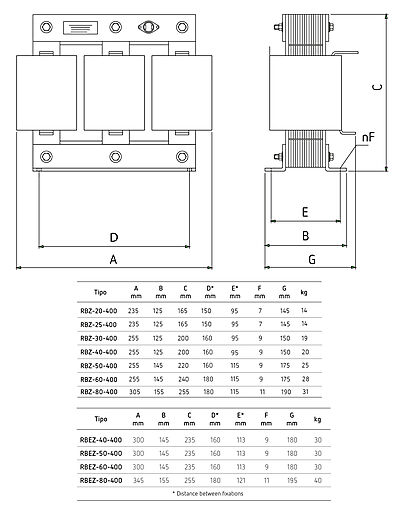

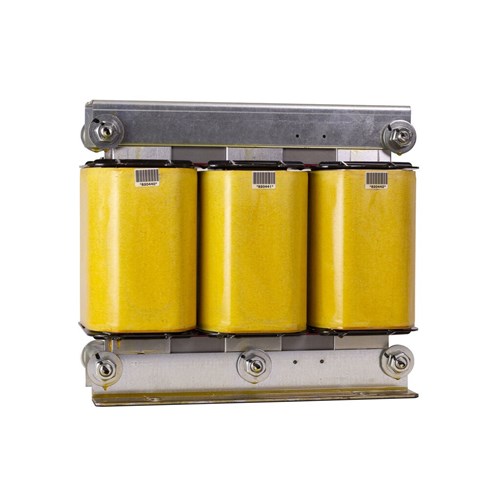

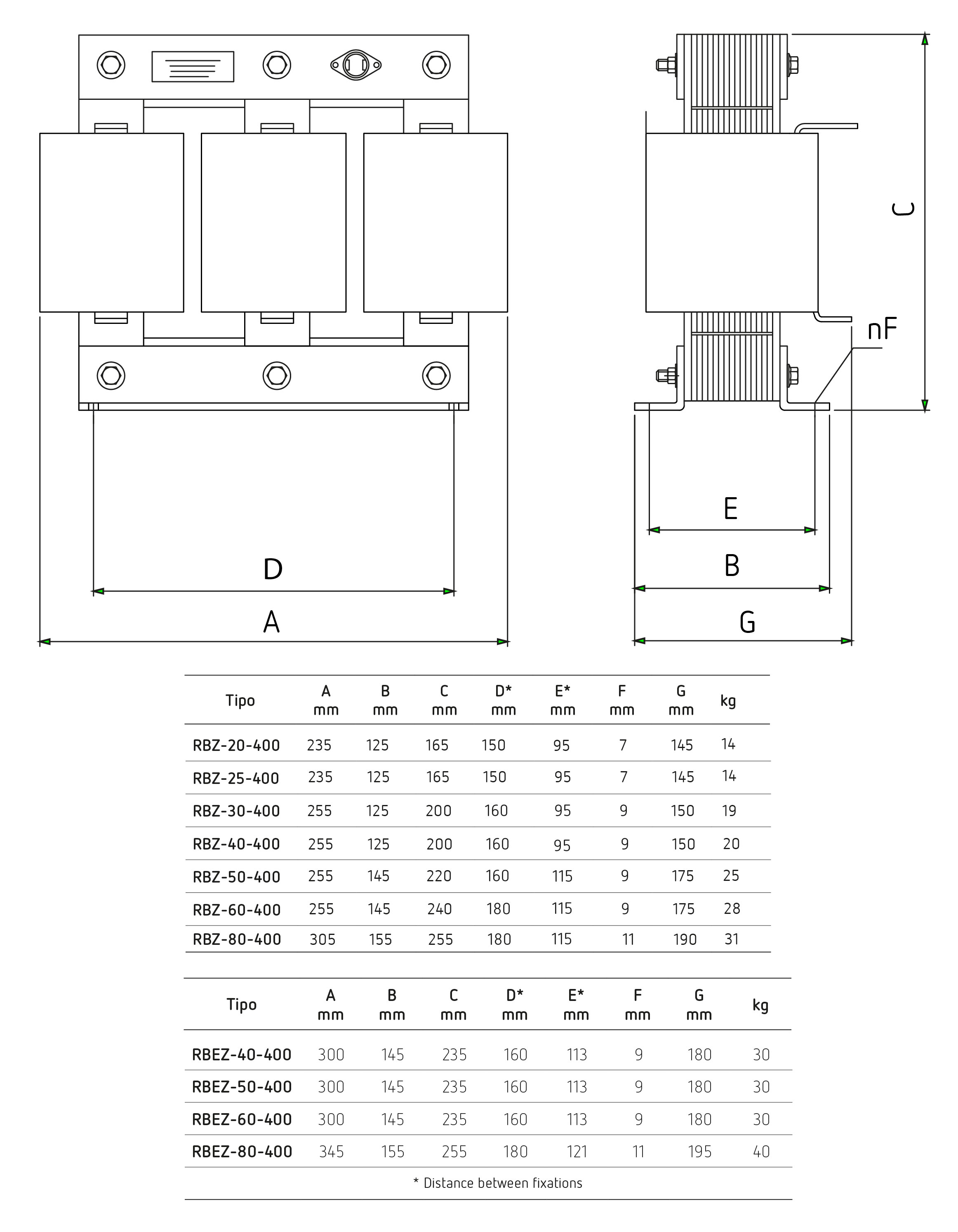

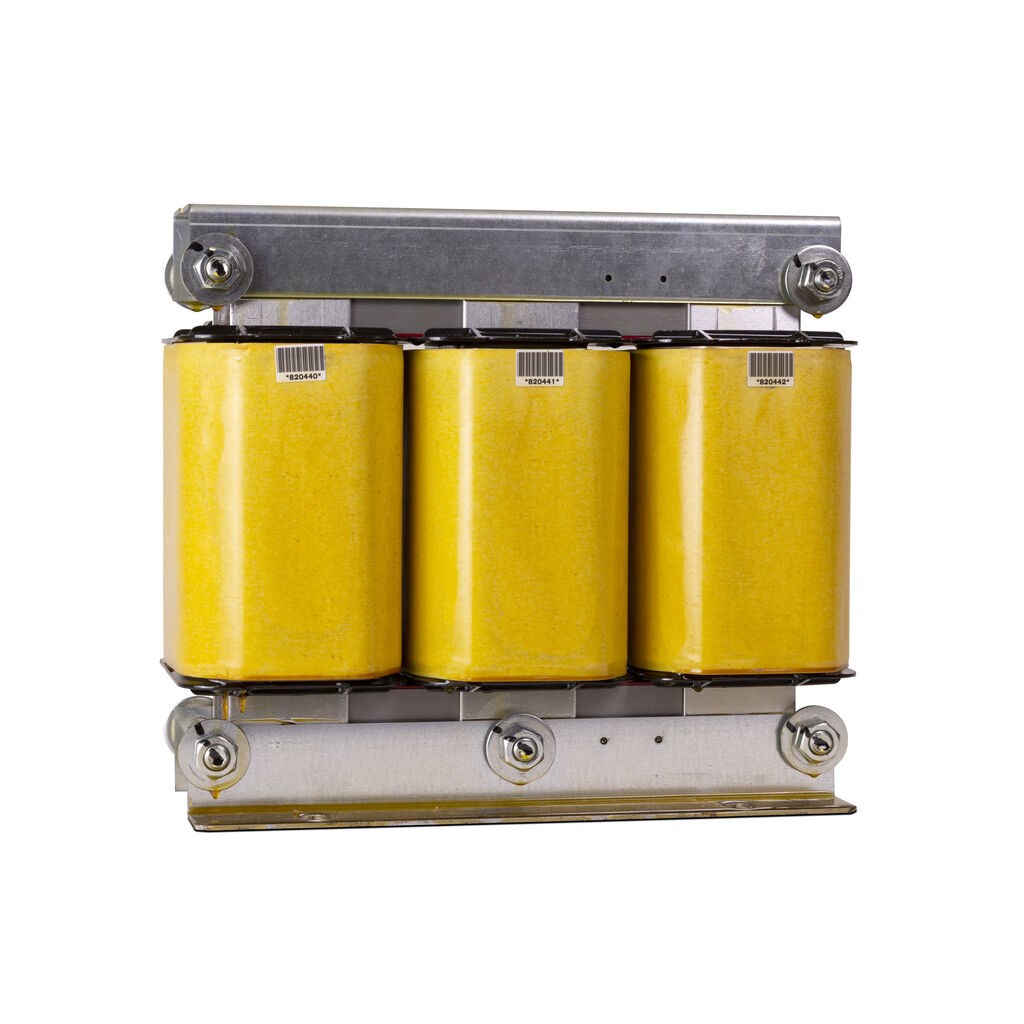

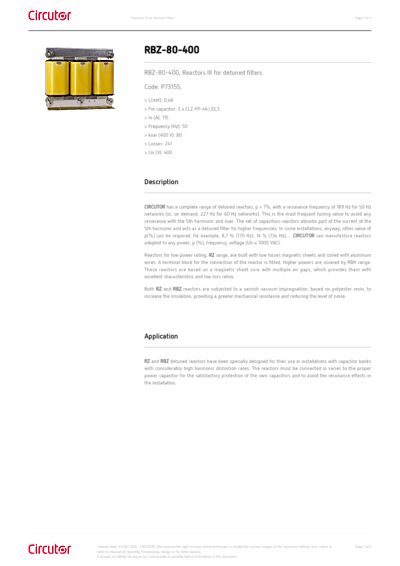

CIRCUTOR P73155 REACTOR 80kVAr 400V 7% DETUNED FILTER REACTOR RBZ-80-400
