Specifications

Brand

Circutor

Series

RZ-RBZ

Rated Insulation Voltage (Ui) 3 kV	Rated Frequency 50 Hz	Voltage 400 V,on request: up to 1000 V
ETIM 9.0 Class EC002565	Thermal Class class F (+155 ºC) On request: class H (+180 ºC)	Protection Class IP 00
Losses (W) 267 W	Max. Transient Current 2 In (1 min)	Inductance (mH) 2.03
Tolerance L ± 5 %	Linearity (5% L) 1.75 In	Permanent Overload (Electrical) 1.17 In
Overvoltage Factor (Per Unit %) 14 % (134 Hz)	Nominal Operating Current 58 A	Circuit Breaker Type 9125°C NC thermostat

Envelope

Conductor type: Aluminium strip / copper cable

Depth 155 mm	Height 255 mm	Weight 40
Width 345 mm	Installation, Location, Position Inside

Ambient Temperature

-10 … +45 ºC

Standards

UNE-EN 60289, IEC 60076

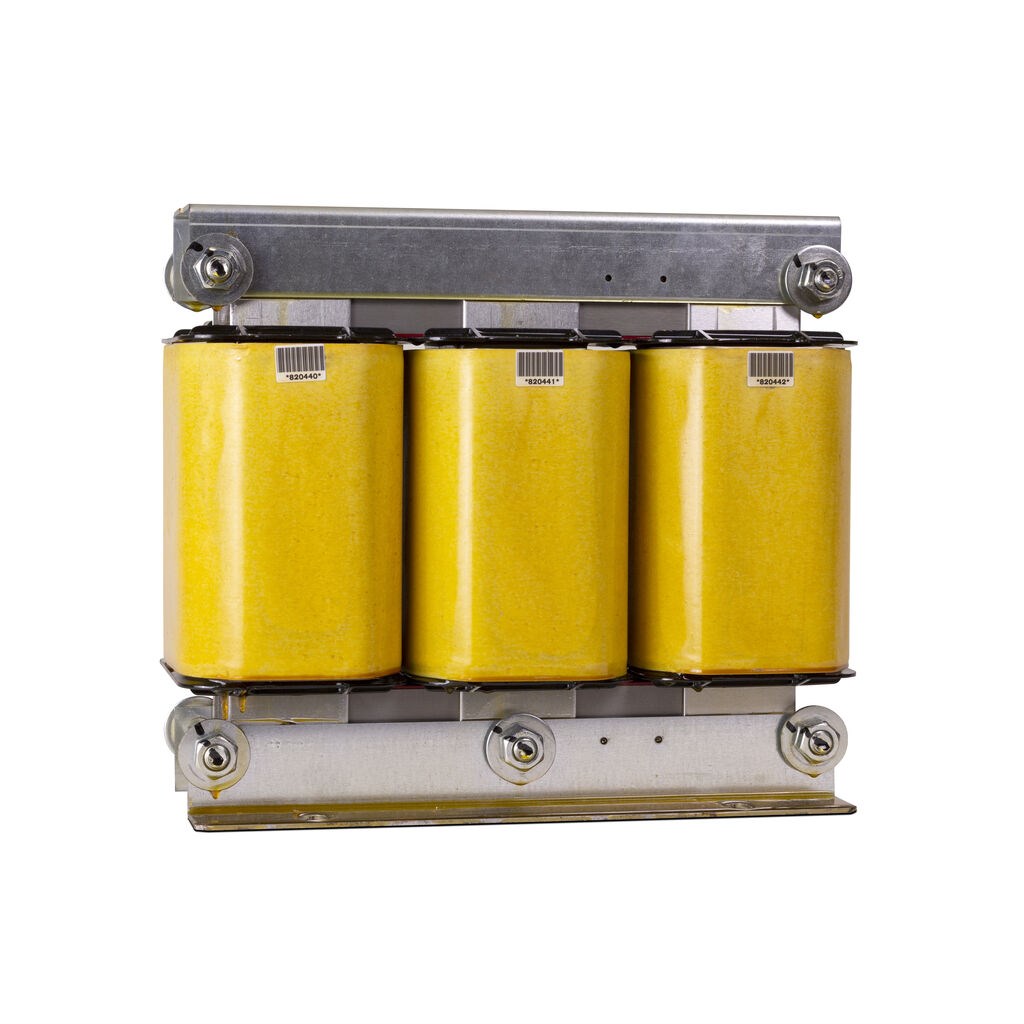

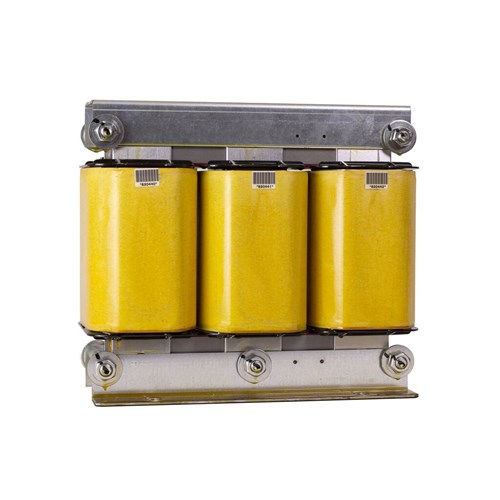

CIRCUTOR P731400000300 REACTOR 40kVAr 400V 14% DETUNED FILTER REACTOR RBZ-40-400-14%
